Concrete Vibrator for Sale

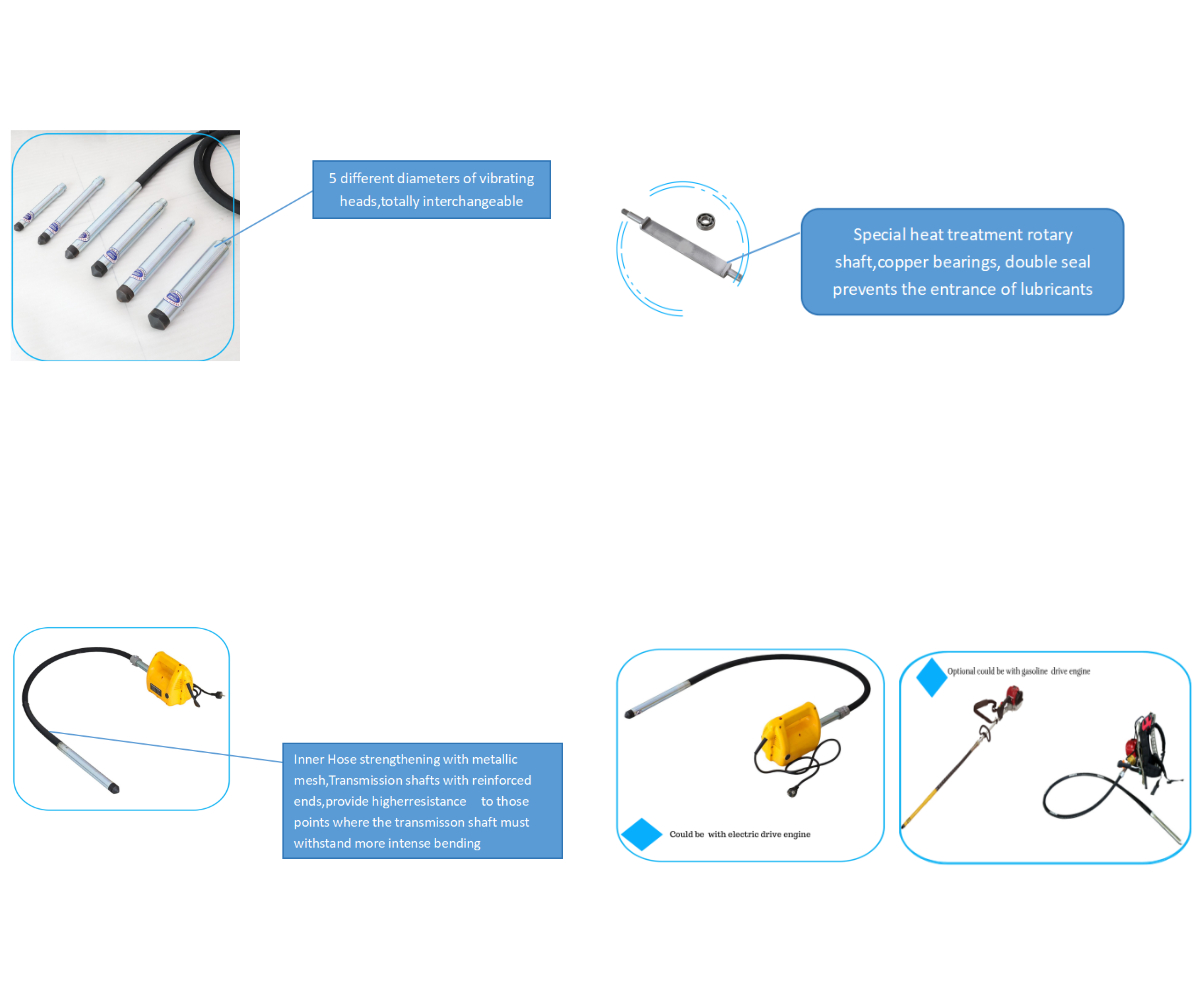

1.5 different diameters of vibrating heads,total interchangeable.Easy interchanges of flexible shafts and vibrator heads
2.Eccentric oversized steel and treated steel end
3.Transmission shafts with reinforced ends,provide higher resistance to those points where the transmission shafts must withstand more intense bending
Product Introduction

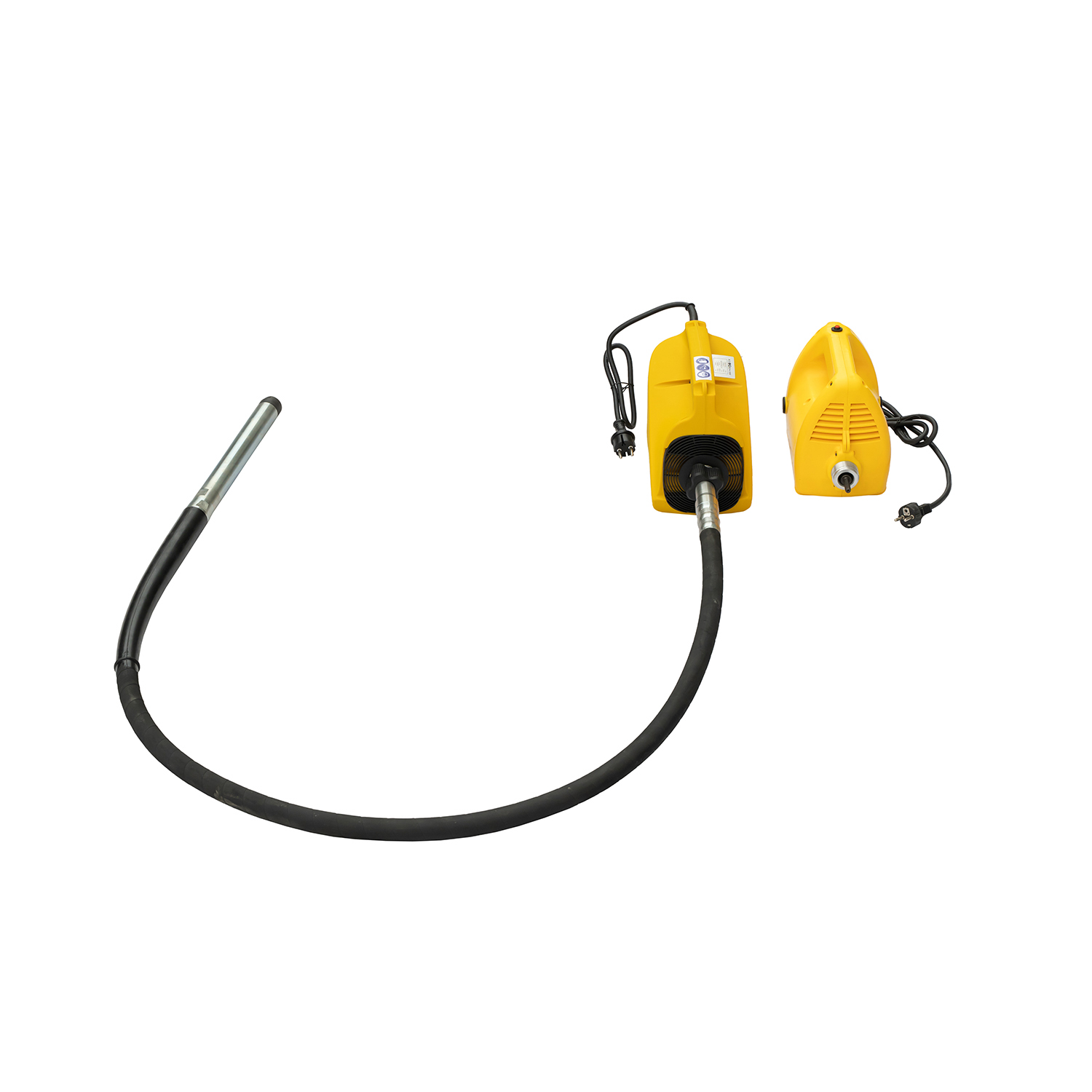

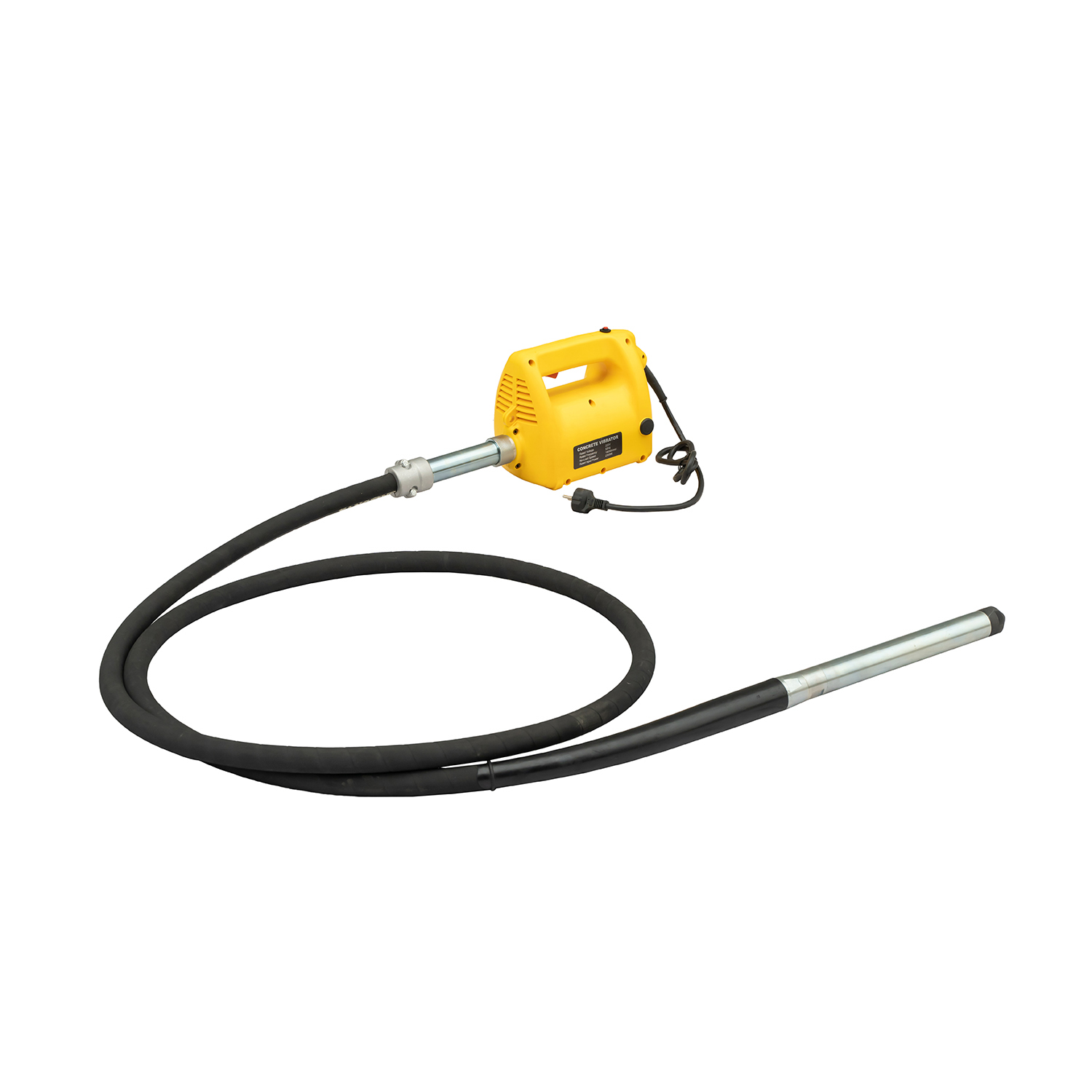

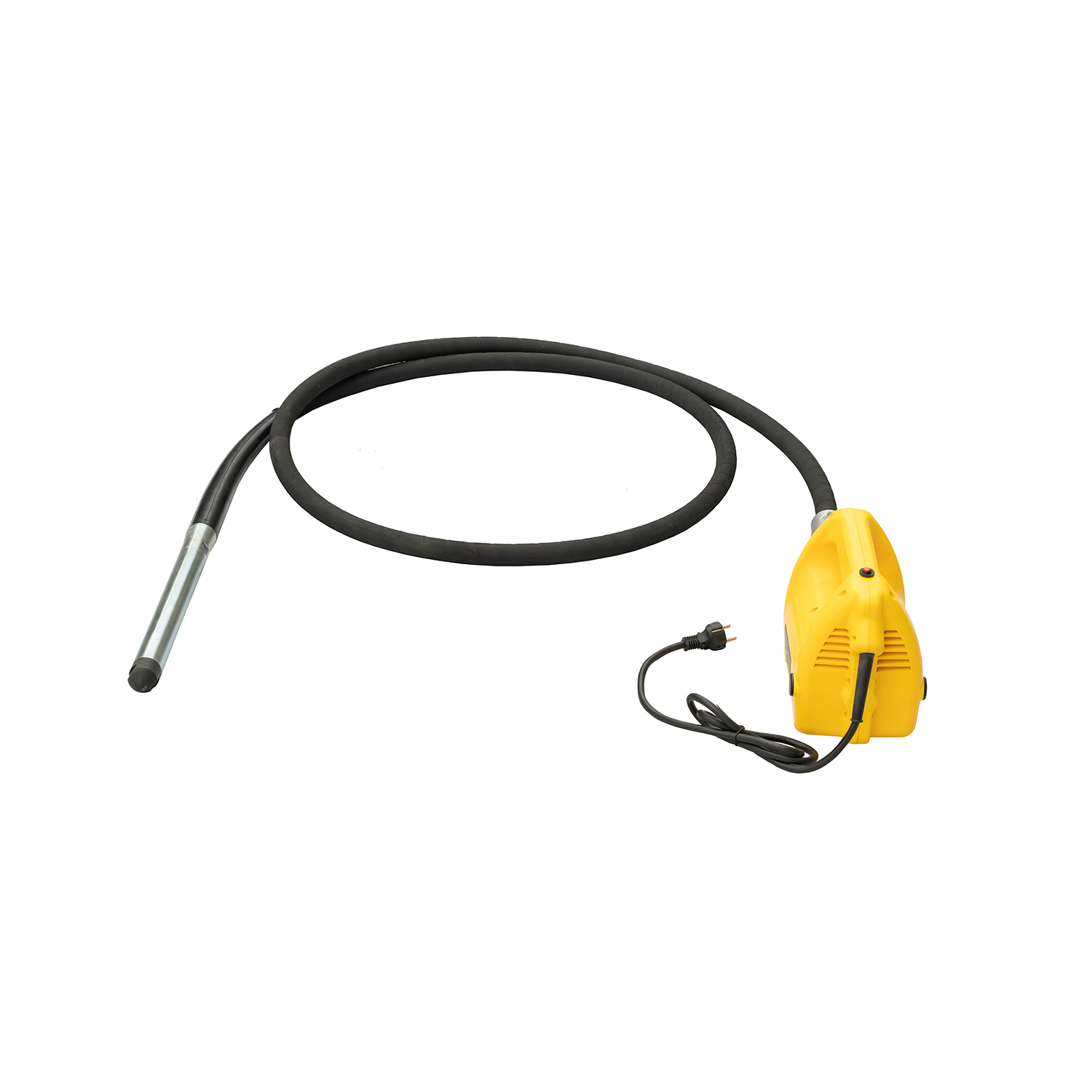

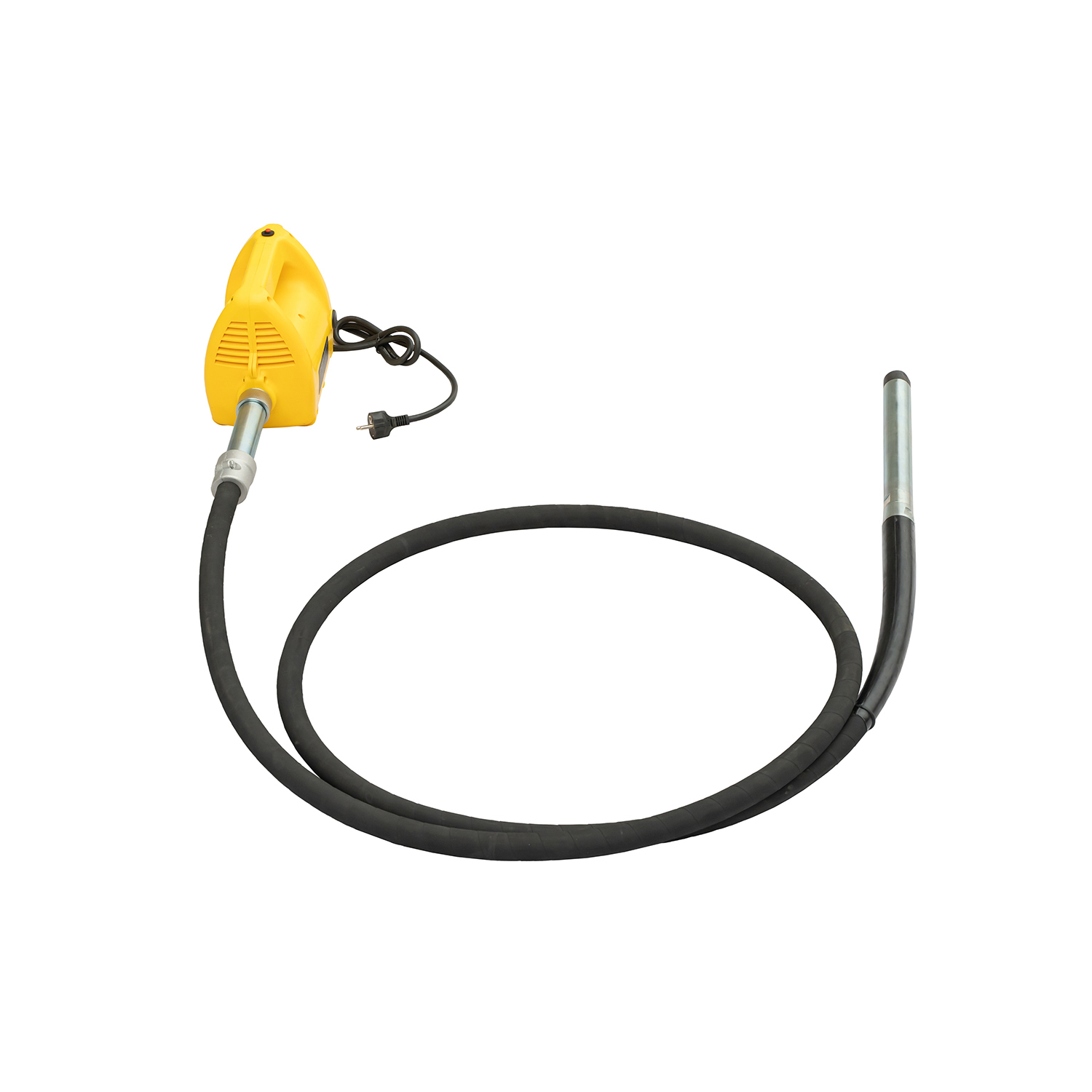

Our Eccentric Concrete Vibrator is a high-performance concrete compaction tool engineered for optimal efficiency, durability, and adaptability on construction sites. Designed to meet the rigorous demands of modern building projects, this tool uses an eccentric vibrating mechanism to deliver powerful, consistent vibrations that effectively eliminate air pockets and ensure a solid, compact concrete structure. Whether for precast forms or in-situ pours, this vibrator is a reliable solution for achieving superior concrete quality.
Product Specifications
Model | Vib. Head Dia.×Length | Head Weight | Vibration | Amplitude | Rubber Hose Dia. | Flexible Shaft Dia. | Length | Joint Type |
YFB-28 | 28×317mm | 1.15kg | 1.0mm | 30mm | 10mm | |||
YFB-32 | 32×332mm | 1.70kg | 1.2mm | 30mm | 10mm | |||
YFB-38 | 38×352mm | 2.10kg | 200-233Hz (12000-14000V.P.M) | 1.6mm | 30mm | 10mm | 4m (1-9m) | 3L/4L |
YFB-45 | 45×352mm | 3.00kg | 1.8mm | 30mm | 10mm | |||
YFB-48 | 48×352mm | 3.45kg | 1.8mm | 30mm | 10mm | |||
YFB-58 | 58×352mm | 5.05kg | 2.0mm | 30mm | 10mm |
Detail
Key Features
1. Five interchangeable vibrating heads are available in different diameters. Flexible shafts and vibrator heads can be quickly and easily swapped, allowing operators to adapt to various job requirements with minimal downtime
2. Built with a heavy-duty eccentric steel mechanism and treated steel ends that ensure strong vibration output and long-term durability, even under extended use
3. The transmission shafts feature reinforced ends to withstand intense bending stress at high-load points, significantly enhancing tool longevity
4. Modular design allows for quick assembly and disassembly without special tools, simplifying operation and maintenance
5. Constructed with sealed bearings and rugged housings that resist wear, dust, and moisture for long-lasting performance in harsh environments

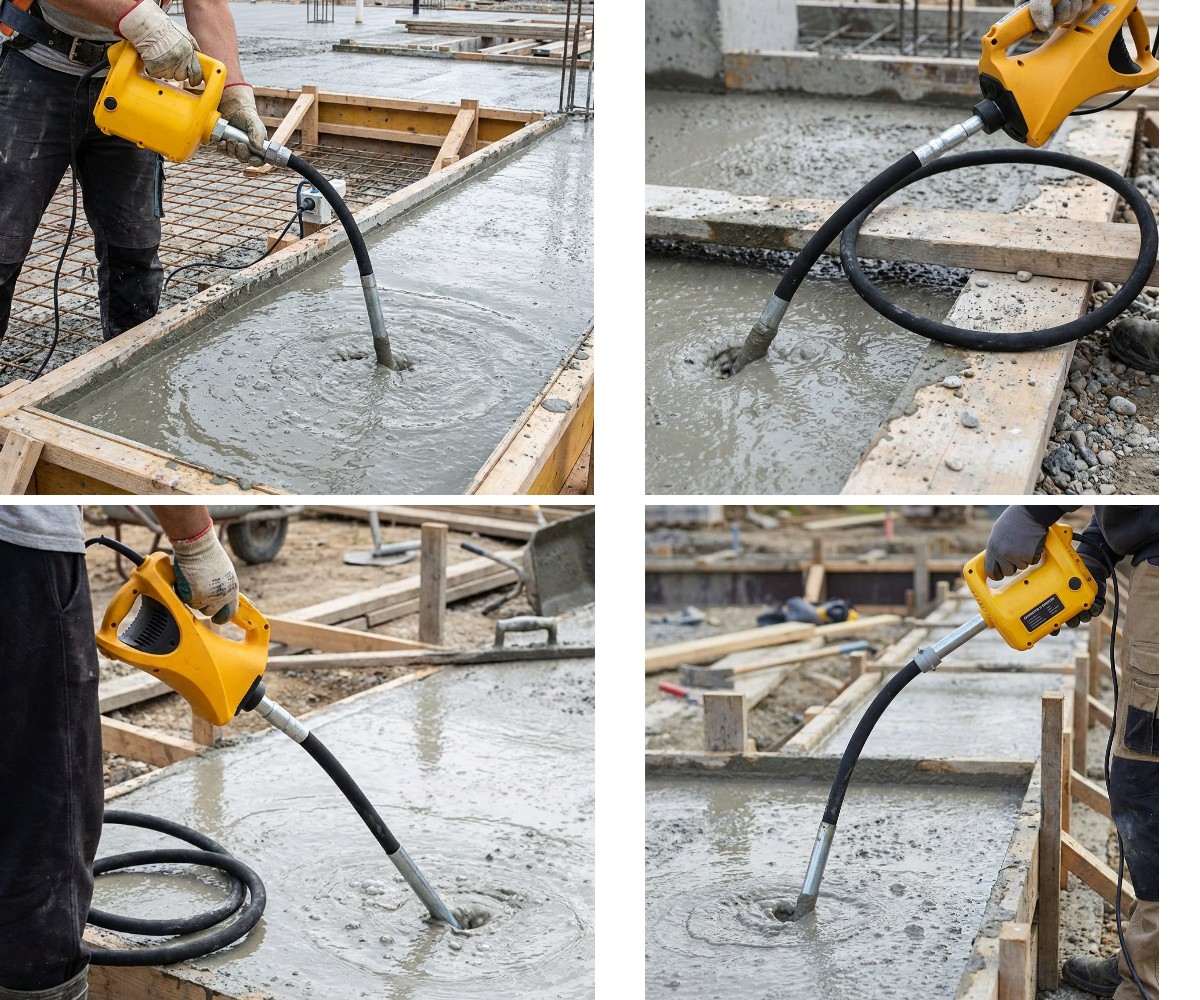

Applications
Ideal for precast concrete production where complete form filling and smooth finishes are essential
Suitable for concrete slabs and floors including decks, pavements, and industrial flooring
Effective in compacting vertical and confined areas such as foundations, beams, and columns
Widely used in civil infrastructure including bridges, tunnels, culverts, and retaining walls
Versatile for commercial, industrial, and residential construction projects with various concrete densities
About us
Liaocheng Yangfine Machinery Co., Ltd, which located in a beautiful water city north of China—Liaocheng High-Tech Zone, with superior geographical position ,more than 50 acres, moldern plants 15000 square meters. With solid technical strength, dozens of high-precision CNC machining equipments.
On the basic of Korean technical, we specializing in designing and producing various kinds of concrete vibrators and other light construction machineries. Main products are :various kinds of concrete vibrators, concrete floor saw, plate compactor and flexible shaft pump. For this ten years ,we have been always committed on the development of concrete vibrators and innovation. So we have won series product patents in this filed. Have been certified to ISO 9001:2000 and CE.
Our products are exported to Europe and the United States, Southeast Asia, the Middle East, North and South America and so on, received high praise from our customers because of excellent quality.We always insist ”Quality first, reputation first, integrity-based, pursuit of excellence” Innovative design, careful manufacturing, attentive service.

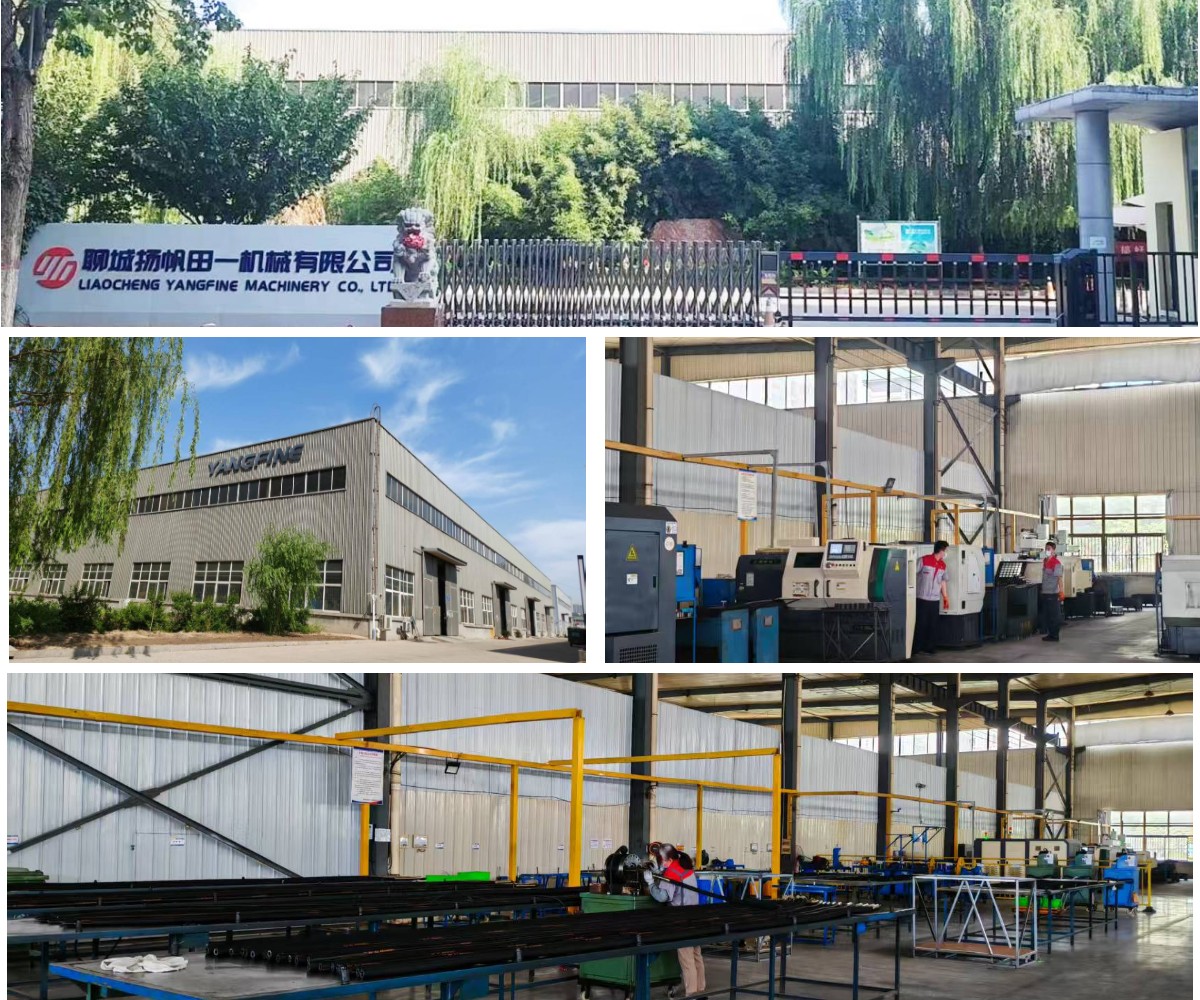

Our company and workshop
Our
Why Choose Us？
Highly adaptable design with five fully interchangeable vibrator heads and flexible shafts to suit a wide range of applications
Engineered with oversized eccentric components and reinforced shaft ends to ensure reliable long-term performance
Simple structure with fast replacement of components reduces maintenance time and improves efficiency on the job site
Experienced construction equipment manufacturer committed to delivering high-quality and innovative products
Customized specifications and voltage options available with fast global delivery and professional technical support

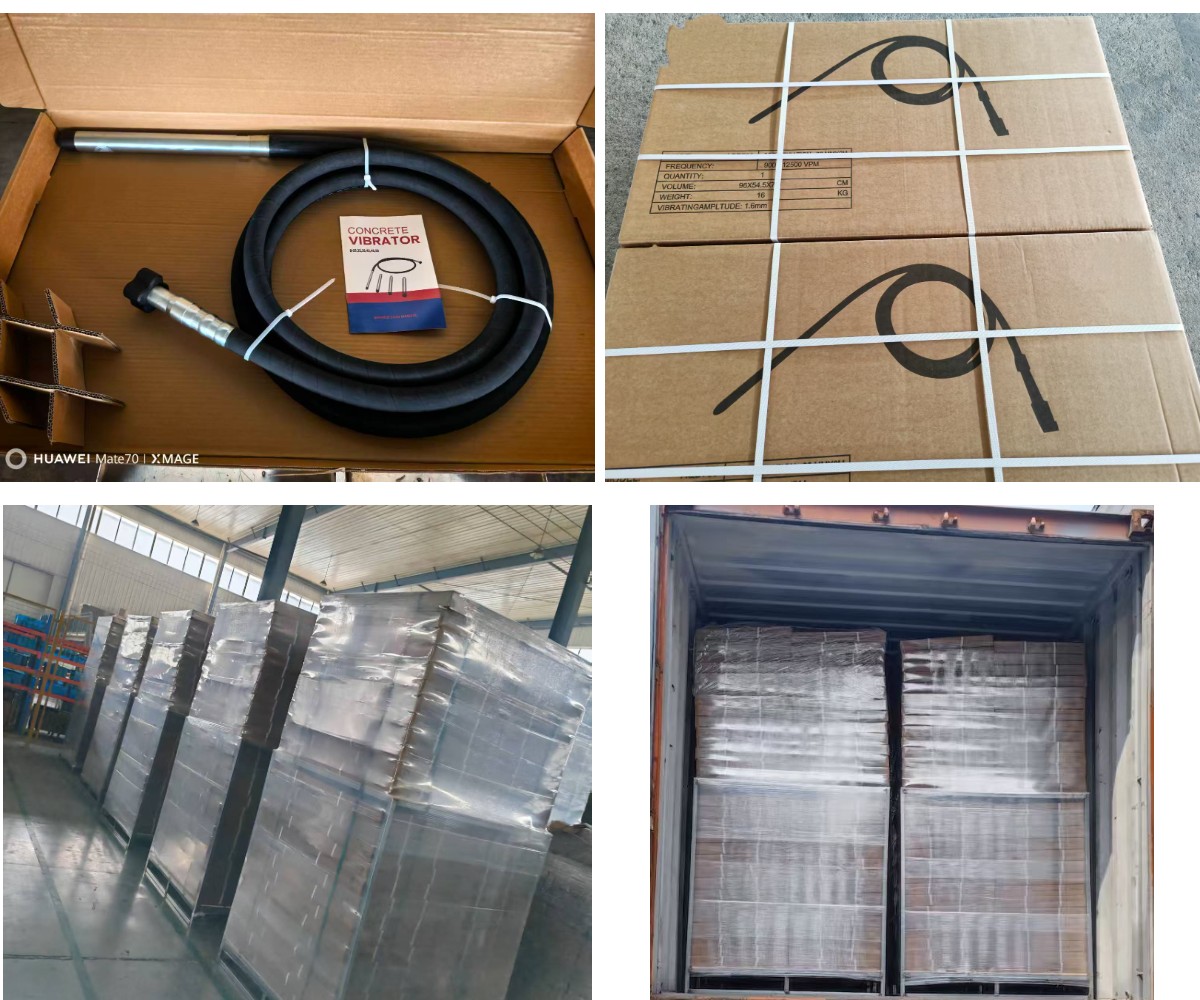

package
Our certificate

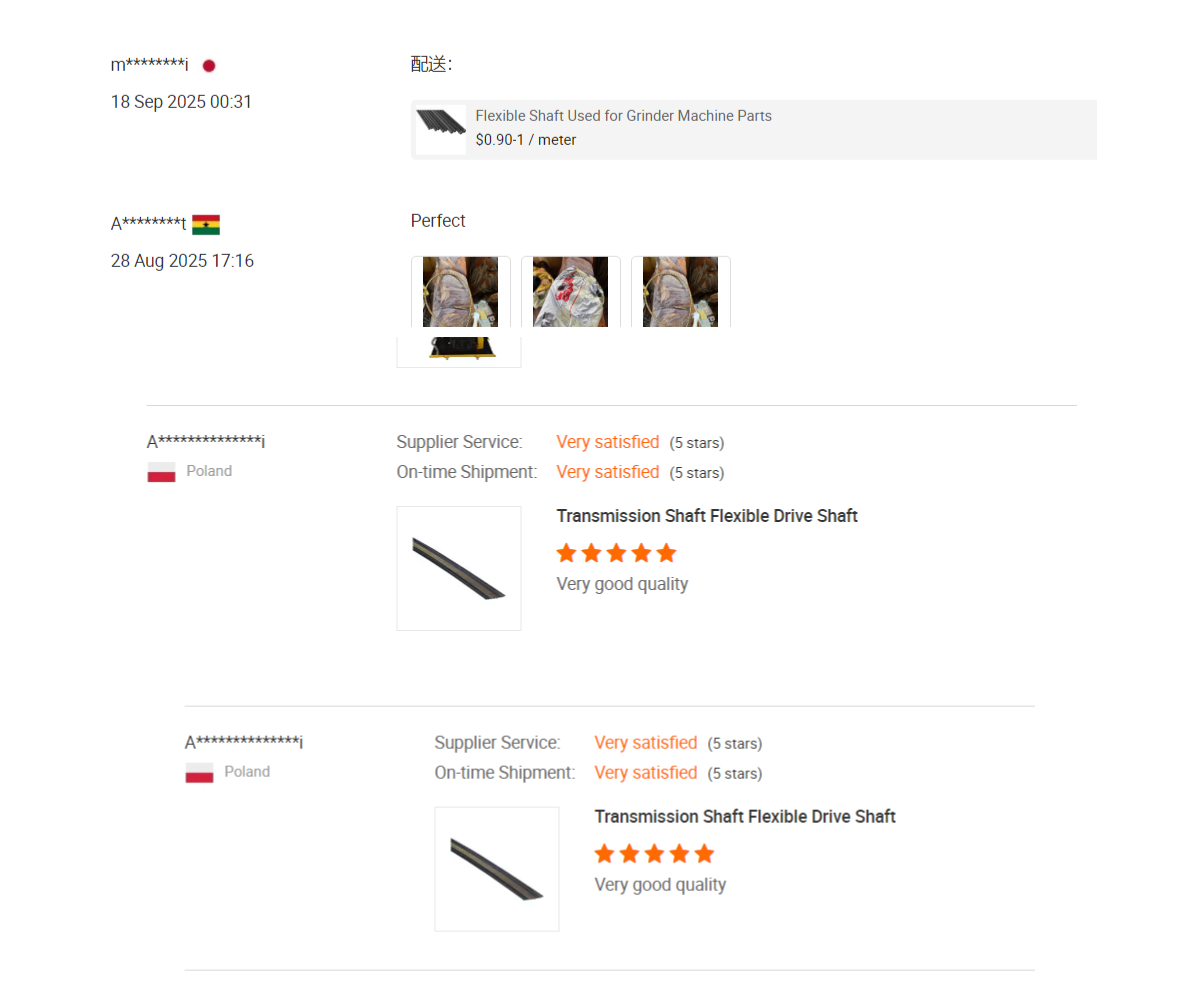

Feedback
Frequently Asked Questions – Concrete Vibrator for Sale
1. What is the minimum order quantity (MOQ)?
We do not have a strict MOQ. Single units can be ordered, making it convenient for testing or small projects.
2. How are the products packed?
Our concrete vibrators are carefully packed in strong cartons and pallets to ensure safe delivery.
3. What payment terms do you offer?
We accept T/T payment: 30% deposit in advance, and 70% balance before shipment. We will provide photos of the products and packaging before the final payment.
4. What shipping and delivery options are available?
We offer EXW, FOB, CFR, CIF, and DDU shipping methods to suit your requirements.
5. What is the delivery time?
Standard delivery is within one month, depending on order quantity and customization.
6. Can you manufacture according to our samples or drawings?
Yes, we can produce concrete vibrators based on your samples or technical drawings.
7. Do you provide samples for testing?
Absolutely. We are happy to provide sample units for evaluation before placing bulk orders.
8. Are all products tested before shipment?
Yes. Each concrete vibrator undergoes 100% performance and quality testing before packaging to ensure reliability.
9. How do you maintain long-term business relationships?
We focus on high-quality products, excellent service, and integrity, ensuring our customers benefit from consistent performance and support.
