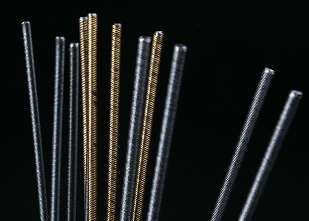

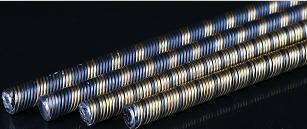

Flexible Motor Shaft
1. Flexible Shaft production center in China
2.Generations technical team R&D enthusiasm and ability
3.32 Years experience focusing on Flexible shafts
4.Hours timely responded service team
5.100%Ensured premium qualityThe Flex Motor Shaft is a high-performance, precision-engineered component designed to efficiently transmit rotary motion in applications where flexibility, durability, and smooth power delivery are critical. Constructed with premium materials, our flexible motor shafts offer excellent wear resistance, high elasticity, and superior bending capability, making them ideal for a wide range of industrial and construction tools. Whether used in submersible pumps, power tools, or concrete vibrators, this shaft ensures reliable, long-lasting performance.
PRODUCT SPECIFICATION PARAMETER FOR PART OF OUR PRODUCTS | ||||||
Flexible shaft | Material | Tolerance(mm) | Bending Diameter (mm) | Layer | Max Failure Torque | Weight |
0.9 | 304 stainless steel wire | (-0.05, 0) | 10-20 | 3 layers 1 core | 0.5 | 0.0036 |
1.5 | 304 stainless steel wire | (-0.1, 0) | 20-30 | 3 layers 1 core | 1.05 | 0.0100 |
2 | 304 stainless steel wire | (-0.1, 0) | 30-40 | 3 layers 1 core | 1.3 | 0.0178 |
3.2 | brass coated steel wire | (-0.1, 0) | 40-60 | 4 layers 1 core | 2.8 | 0.0457 |
4 | 304 stainless steel wire | (-0.1, 0) | 60-80 | 4 layers 1 core | 5.2 | 0.0714 |
5 | 70#/65Mn | (-0.12, 0) | 80-100 | 4 layers 1 core | 6.8 | 0.1116 |
5.2 | 304 stainless steel wire | (-0.12, 0) | 80-100 | 5 layers 1 core | 6 | 0.1207 |
6（normal) | 70#/65Mn | (-0.15, 0) | 90-110 | 6 layers 1 core | 6.6 | 0.1606 |
6.35 | 70#/65Mn | (-0.15, 0) | 140-160 | 4 layers 1 core | 15 | 0.1799 |
6.5 | brass coated steel wire | (-0.15, 0) | 100-120 | 7 layers 1 core | 9.5 | 0.1885 |
7 | 304 stainless steel wire | (-0.15, 0) | 140-160 | 5 layers 1 core | 16 | 0.2186 |
8(all black) | 70#/65Mn | (-0.15, 0) | 100-120 | 5 layers 1 core | 37 | 0.2856 |
8(5 brass coated | brass coated steel wire+70# | (-0.15, 0) | 140-160 | 5 layers 1 core | 30 | 0.2856 |
9 | 70#/65Mn | (-0.15, 0) | 180-200 | 4 layers 1 core | 42 | 0.3614 |
9.15(high speed) | 70#/65Mn | (-0.15, 0) | 240-260 | 5 layers 1 core | 45 | 0.3736 |
9.5(all brass coated) | brass coated steel wire+70# | (-0.15, 0) | 150-180 | 6 layers 1 core | 50 | 0.4027 |
10(normal) | 70#/65Mn | (-0.18, 0) | 240-260 | 4 layers 1 core | 50 | 0.4462 |
12(normal) | 70#/65Mn | (-0.18, 0) | 250-270 | 5 layers 1 core | 70 | 0.6425 |
13(normal) | 70#/65Mn | (-0.18, 0) | 260-280 | 5 layers 1 core | 110 | 0.7541 |
14(normal) | 70#/65Mn | (-0.18, 0) | 280-300 | 5 layers 1 core | 90 | 0.8746 |
15(normal) | 70#/65Mn | (-0.18, 0) | 320-340 | 5 layers 1 core | 120 | 1.0040 |
16(normal) | 70#/65Mn | (-0.18, 0) | 340-360 | 5 layers 1 core | 180 | 1.1423 |
18(normal) | 70#/65Mn | (-0.18, 0) | 450-480 | 5 layers 1 core | 210 | 1.4457 |
20(normal) | 70#/65Mn | (-0.25, 0) | 650-700/1000-1100 | 5 layers 1 core | 360 | 1.7848 |
22(normal) | 70#/65Mn | (-0.25, 0) | 1000-1100 | 5 layers 1 core | 400 | 2.1596 |
25 | 70#/65Mn | (-0.2,0.3) | 900-1100 | 10 layers 1 core | 570 | 2.7888 |
26 | 70#/65Mn | (-0.3,0.3) | 900-1100 | 7 layers 1 core | 950 | 3.0163 |
27(normal) | 70#/65Mn | （-0.5,0） | 900-1100 | 7 layers 1 core | 520 | 3.2528 |
32(normal) | 70#/65Mn | （-0.5,0） | 1000-1200 | 9 layers 1 core | 680 | 4.5691 |
40 | 70#/65Mn | （-0.5,0） | 1000-1200 | 10 layers 1 core | 800 | 7.1392 |
48 | 70#/65Mn | （-1, 0） | 1000-1200 | 12 layers 1 core | 1500 | 10.2804 |
Our Workshop

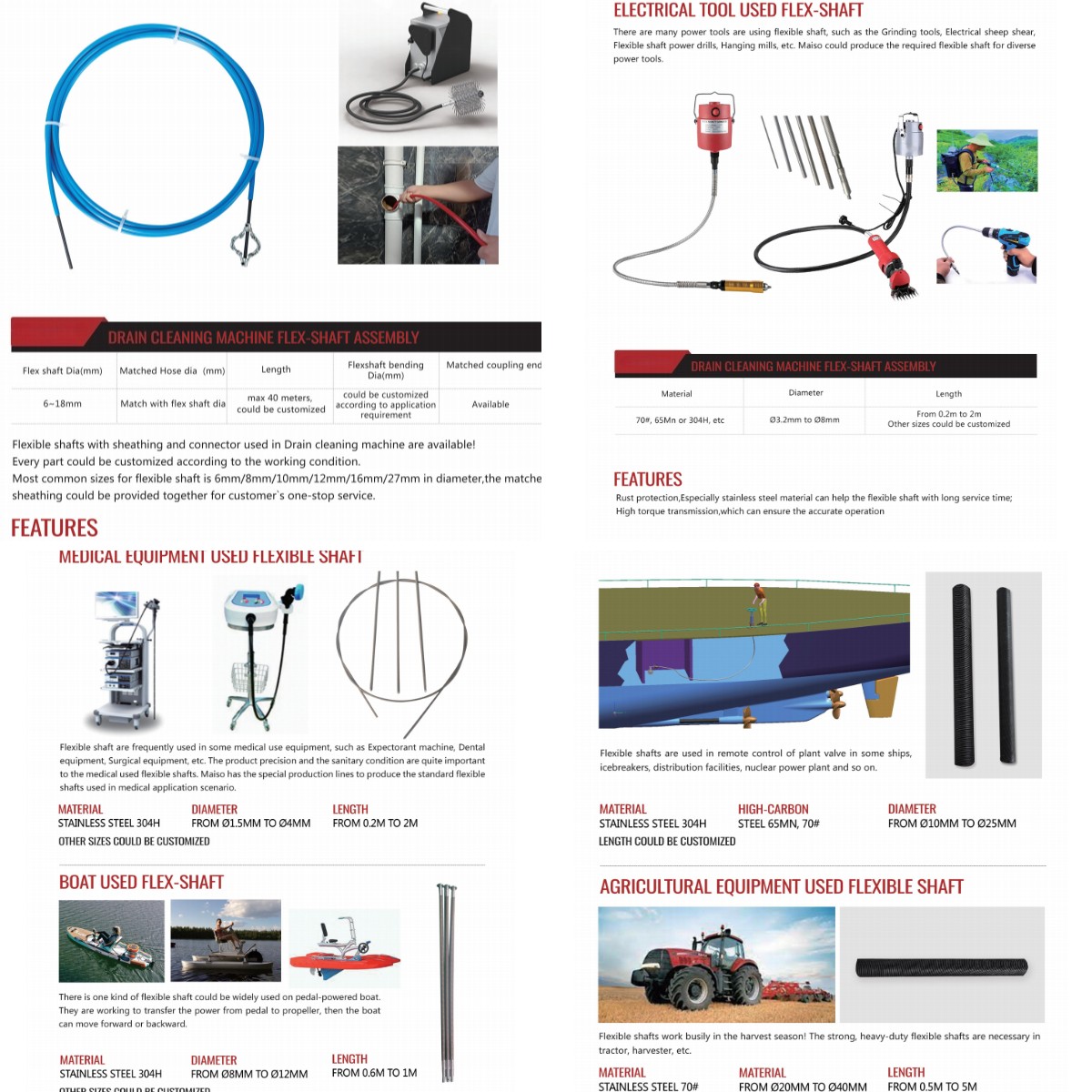

Applications
Why Choose Us?
32+ Years of Expertise in designing and manufacturing flexible drive shafts for global industrial markets
Custom Drive Shaft Solutions tailored to your specifications, including diameter, length, fittings, and torque capacity
Low Minimum Order Quantities to support startups, R&D, and flexible procurement strategies
Fast Delivery and Responsive Service to keep your projects on schedule
Strict Quality Control ensures every shaft meets durability and performance standards before shipment
