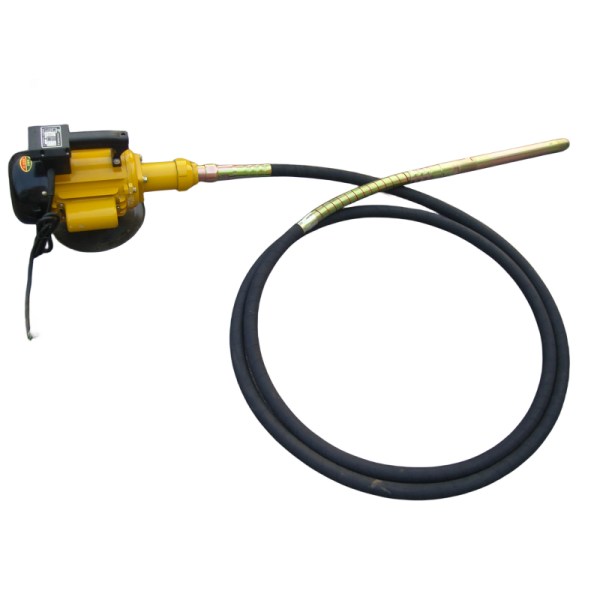

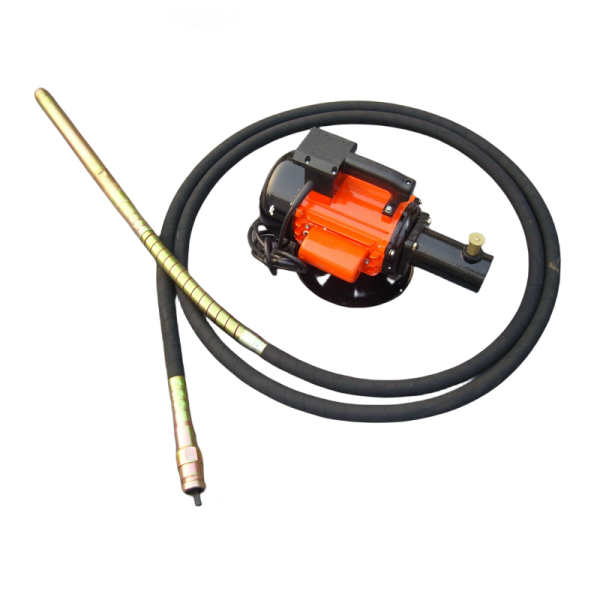

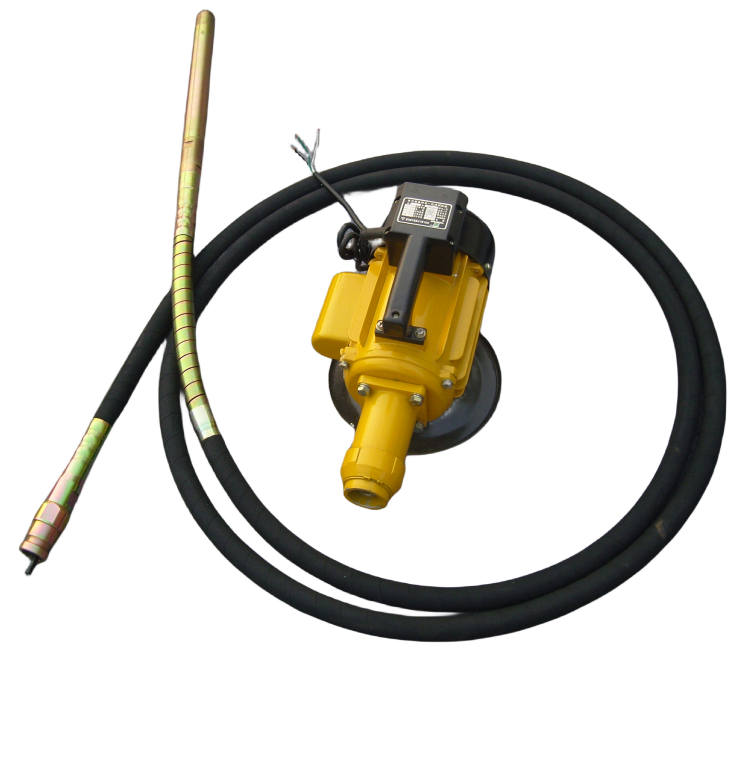

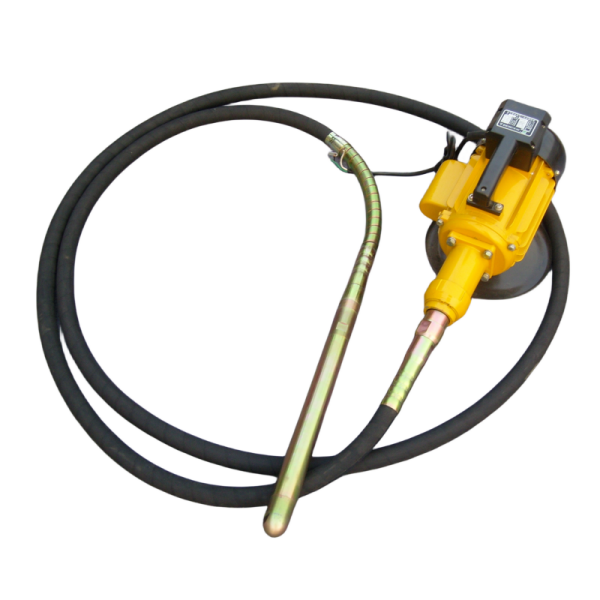

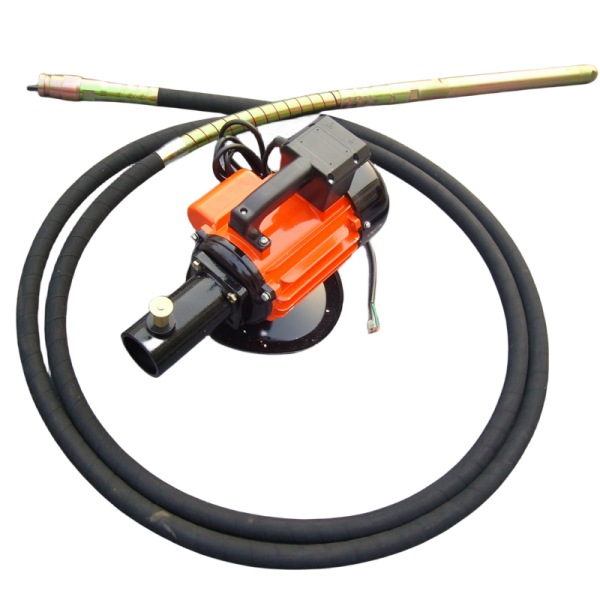

Electric Concrete Vibrator
1. Its equally efficient operation with an electric engine,or gasoline engine or diesel engine.Can be adapted to all kinds of building conditions
2. Can be with different types of couplings
3. Optimal compaction of the concrete and the reduction in the effort required and production costs
Designed for demanding concrete consolidation tasks, the Electric Concrete Vibrator provides stable vibration output and dependable performance on a wide range of construction sites. Its robust structure and efficient vibration system allow concrete to be compacted evenly and thoroughly, improving overall structural strength and surface quality.
The vibrator can be configured with electric, gasoline, or diesel power options, making it adaptable to different working environments, including sites with limited power access. The optimized vibration mechanism delivers strong penetration into wet concrete, significantly reducing air voids while lowering operator effort and increasing work efficiency.
Widely used in building construction, infrastructure projects, and road engineering, this concrete vibrator is built for long service life and consistent results. With reliable operation and low maintenance requirements, it is an ideal solution for contractors seeking productivity, durability, and cost-effective performance.
Product Specifications
JS Series (Spring type)
Model | Vib. Head Dia.×Length | Head Weight | Vibration | Amplitude | Rubber Hose Dia. | Flexible Shaft Dia. | Length | Joint Type |
YFJS-28 | 28×420mm | 1.70kg | 150-208Hz (9000-12500V.P.M.) | 1.2mm | 30mm | 10mm | C/D/E | |
YFJS-32 | 32×424mm | 1.90kg | 1.4mm | 30mm | 10mm | |||
YFJS-38 | 38×439mm | 2.85kg | 1.6mm | 30mm | 10mm | 6m(2-12m) | ||
YFJS-45 | 45×450mm | 3.80kg | 2.0mm | 30mm | 10mm | |||
YFJS-60 | 60×443mm | 5.80kg | 2.4mm | 32mm | 12/13mm |
J Series
Model | Vib. Head Dia.×Length | Head Weight | Vibration | Amplitude | Rubber Hose Dia. | Flexible Shaft Dia. | Length | Joint Type |
YFJ-28 | 28×420mm | 1.55kg | 150-208Hz (9000-12500V.P.M.) | 1.2mm | 30mm | 10mm | C/D/E | |
YFJ-32 | 32×445mm | 2.10kg | 1.4mm | 30mm | 10mm | |||
YFJ-38 | 38×447mm | 2.80kg | 1.6mm | 30mm | 10mm | 6m(2-12m) | ||
YFJ-45 | 45×445mm | 3.85kg | 2.0mm | 30mm | 10mm | |||
YFJ-60 | 60×443mm | 5.65kg | 2.4mm | 32mm | 12/13mm |
CE Series
Model | Vib. Head Dia.×Length | Head Weight | Vibration | Amplitude | Rubber Hose Dia. | Flexible Shaft Dia. | Length | Joint Type |
YFCE-35 | 35×377mm | 1.85kg | 1.6mm | 30mm | 10mm | C/D/E | ||
YFCE-50 | 50×453mm | 4.60kg | 2.2mm | 36mm | 13mm | |||
YFCE-70 | 67×460mm | 7.40kg | 150-208Hz (9000-12500V.P.M.) | 2.5mm | 36mm | 13mm | ||
YFCE-35L | 35×377mm | 1.90kg | 1.6mm | 30mm | 10mm | |||
YFCE-50L | 50×470mm | 4.75kg | 2.2mm | 36mm | 13mm | |||
YFCE-70L | 67×470mm | 7.90kg | 2.5mm | 36mm | 13mm |

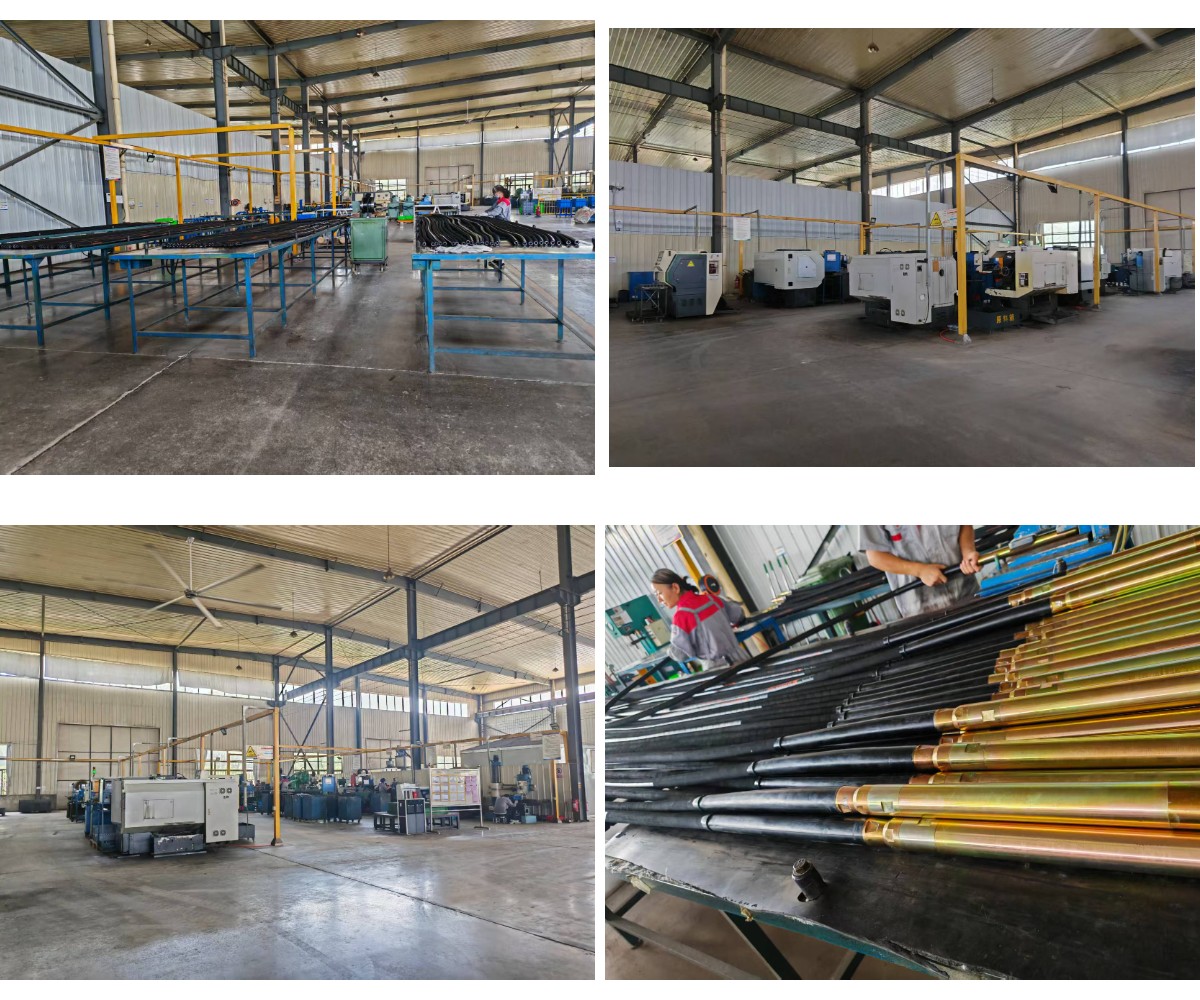

Our workshop
Our package
Key Features
Flexible Power Choices
Compatible with electric, gasoline, or diesel engines, allowing seamless operation across diverse construction sites, whether on-grid or off-grid.
High-Force Oscillating Head
The pendulum-driven vibration mechanism generates strong centrifugal energy for thorough concrete consolidation and uniform density.
Adaptable Connection System
Supports multiple coupling interfaces, enabling quick integration with different motors and drive units for maximum versatility.
Efficient and Economical
Optimized design delivers superior concrete compaction with reduced energy and manpower requirements, minimizing operational time and cost.
Rugged and Reliable
Built from premium materials to withstand continuous heavy-duty use while minimizing maintenance needs.
Applications
Foundations & Building Slabs
Ensures solid, air-free concrete placement in footings, beams, and slabs for residential and commercial projects.
Roadways & Bridge Decks
Ideal for wide horizontal pours, delivering uniform compaction in pavements, highways, and bridge structures.
Vertical Structures & Columns
Reaches deep into reinforced forms, effectively compacting around dense rebar in high-rise buildings and structural columns.
Civil Engineering & Infrastructure
Perfect for tunnels, culverts, water tanks, and other large-scale projects where consistent concrete density is critical.
Remote or Off-Grid Worksites
Optional engine configurations allow reliable operation in locations without stable electricity or power supply.
Why Choose Us？
We offer a pendulum concrete vibrator that combines adaptability, strength, and cost-efficiency to meet the real-world needs of construction professionals. Our product is:
Adaptable to various power sources and working environments
Compatible with multiple coupling systems
Engineered for maximum vibration efficiency with minimal energy loss
Backed by years of manufacturing expertise and strict quality control
Supported with fast delivery, responsive customer service, and customizable options
