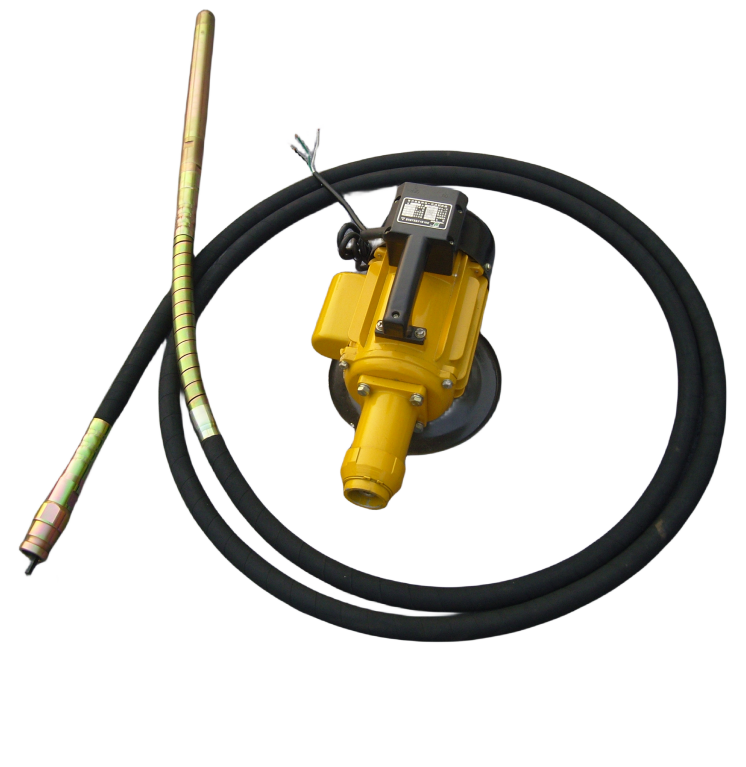

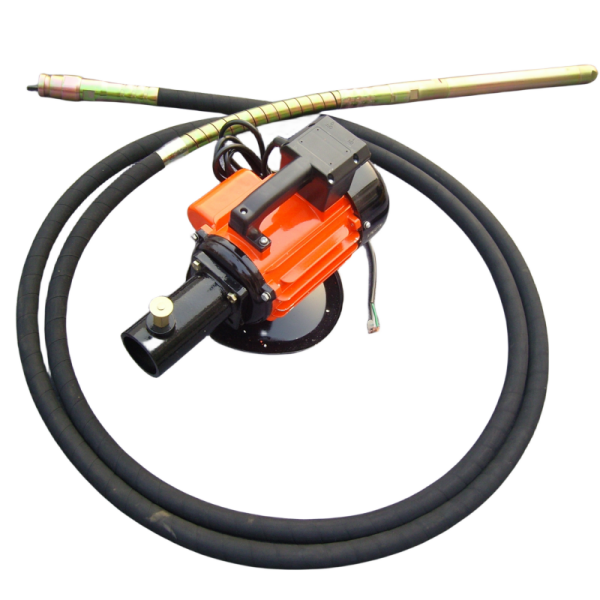

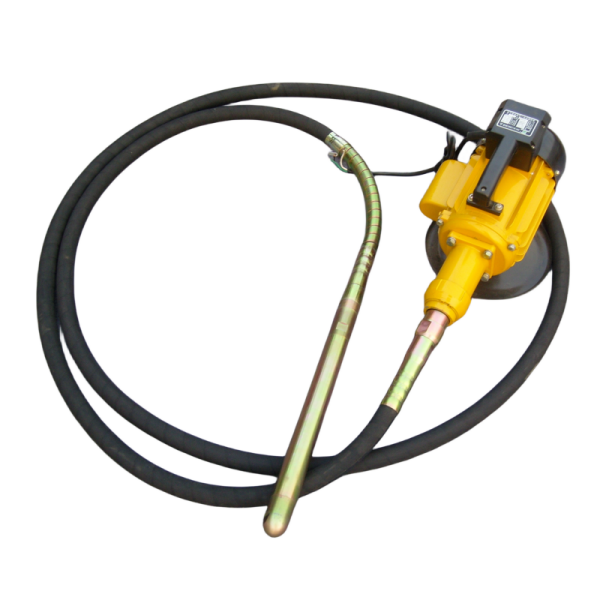

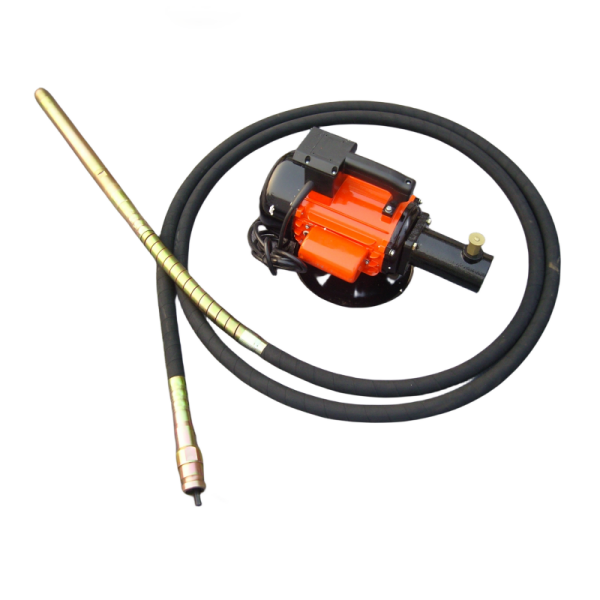

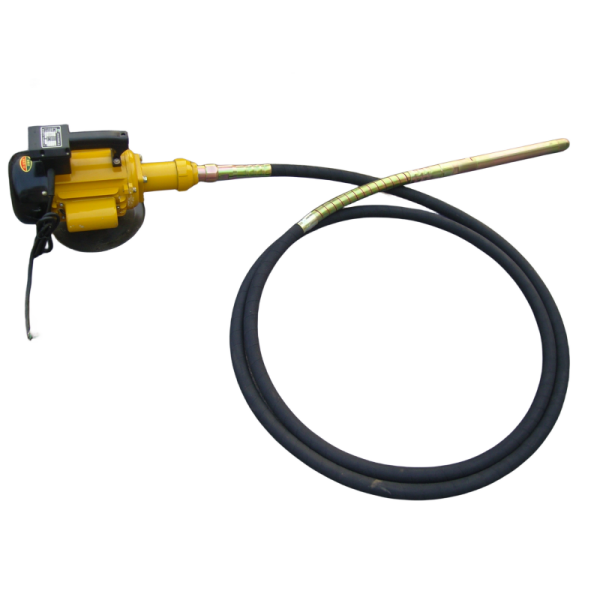

Portable Concrete Vibrator

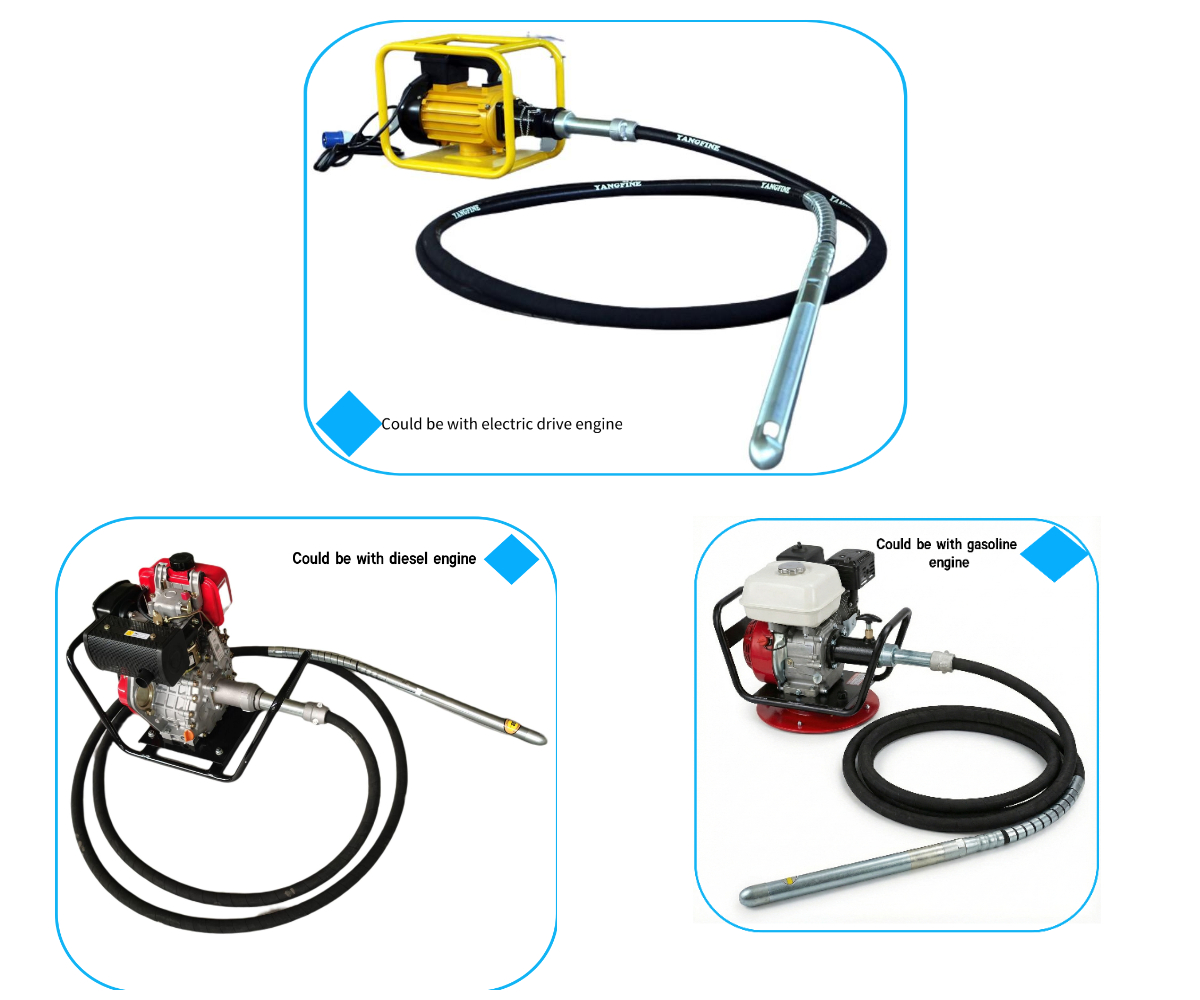

1. Its equally efficient operation with an electric engine,or gasoline engine or diesel engine.Can be adapted to all kinds of building conditions
2. Can be with different types of couplings
3. Optimal compaction of the concrete and the reduction in the effort required and production costs
The Portable Concrete Vibrator is an internal vibration solution engineered for demanding concrete compaction tasks where reliability, mobility, and efficiency are critical. Designed for continuous job-site operation, it supports electric, gasoline, and diesel drive systems, allowing contractors to work efficiently under any power condition.
By integrating a precision pendulum vibration mechanism, the vibrator produces concentrated centrifugal force that penetrates deeply into fresh concrete. This results in superior air removal, consistent density, and improved structural strength—while significantly reducing manual workload and speeding up construction progress. From vertical structural elements to large-scale civil projects, it delivers stable output and long service life.

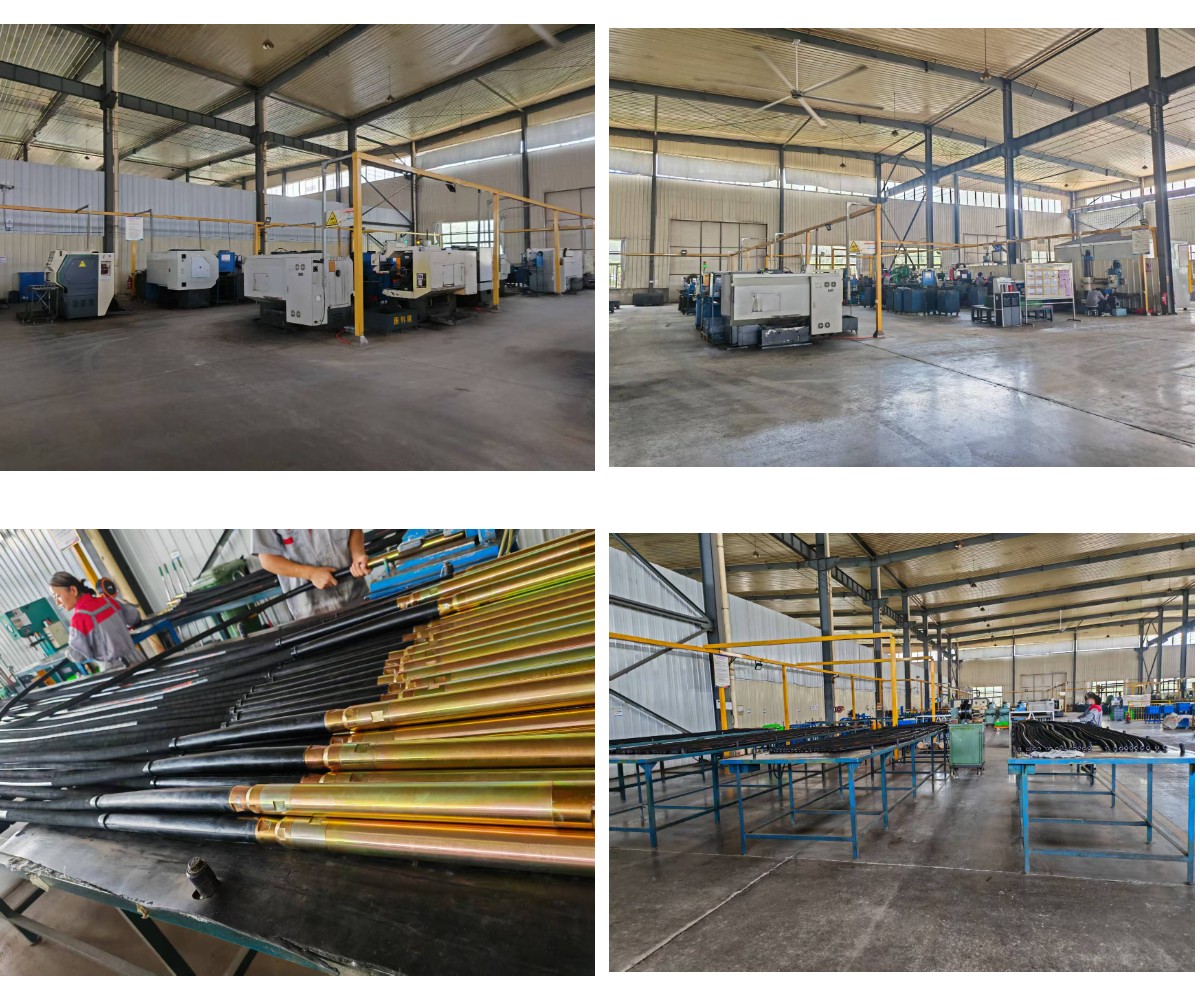

Our Workshop
Performance Highlights
Multiple Power Options
Designed to operate seamlessly with electric motors, gasoline engines, or diesel engines, ensuring maximum flexibility across urban and remote job sites.
High-Energy Pendulum Vibration
The optimized pendulum system generates strong and stable vibration energy, enabling thorough concrete consolidation even in heavily reinforced sections.
Universal Connection Design
Compatible with a variety of coupling systems, allowing easy integration with different drive units and flexible shaft configurations.
Efficient & Economical Operation
Maximizes compaction efficiency while minimizing energy loss, reducing fuel consumption, operating costs, and overall construction time.
Heavy-Duty Construction
Manufactured using wear-resistant materials and reinforced components to withstand harsh environments with minimal maintenance requirements.
Product Specifications
JS Series (Spring type)
Model | Vib. Head Dia.×Length | Head Weight | Vibration | Amplitude | Rubber Hose Dia. | Flexible Shaft Dia. | Length | Joint Type |
YFJS-28 | 28×420mm | 1.70kg | 150-208Hz (9000-12500V.P.M.) | 1.2mm | 30mm | 10mm | C/D/E | |
YFJS-32 | 32×424mm | 1.90kg | 1.4mm | 30mm | 10mm | |||
YFJS-38 | 38×439mm | 2.85kg | 1.6mm | 30mm | 10mm | 6m(2-12m) | ||
YFJS-45 | 45×450mm | 3.80kg | 2.0mm | 30mm | 10mm | |||
YFJS-60 | 60×443mm | 5.80kg | 2.4mm | 32mm | 12/13mm |
J Series
Model | Vib. Head Dia.×Length | Head Weight | Vibration | Amplitude | Rubber Hose Dia. | Flexible Shaft Dia. | Length | Joint Type |
YFJ-28 | 28×420mm | 1.55kg | 150-208Hz (9000-12500V.P.M.) | 1.2mm | 30mm | 10mm | C/D/E | |
YFJ-32 | 32×445mm | 2.10kg | 1.4mm | 30mm | 10mm | |||
YFJ-38 | 38×447mm | 2.80kg | 1.6mm | 30mm | 10mm | 6m(2-12m) | ||
YFJ-45 | 45×445mm | 3.85kg | 2.0mm | 30mm | 10mm | |||
YFJ-60 | 60×443mm | 5.65kg | 2.4mm | 32mm | 12/13mm |
CE Series
Model | Vib. Head Dia.×Length | Head Weight | Vibration | Amplitude | Rubber Hose Dia. | Flexible Shaft Dia. | Length | Joint Type |
YFCE-35 | 35×377mm | 1.85kg | 1.6mm | 30mm | 10mm | C/D/E | ||
YFCE-50 | 50×453mm | 4.60kg | 2.2mm | 36mm | 13mm | |||
YFCE-70 | 67×460mm | 7.40kg | 150-208Hz (9000-12500V.P.M.) | 2.5mm | 36mm | 13mm | ||
YFCE-35L | 35×377mm | 1.90kg | 1.6mm | 30mm | 10mm | |||
YFCE-50L | 50×470mm | 4.75kg | 2.2mm | 36mm | 13mm | |||
YFCE-70L | 67×470mm | 7.90kg | 2.5mm | 36mm | 13mm |
The detail
Typical Applications
Building Construction
Ideal for slabs, beams, columns, and foundations, ensuring dense, void-free concrete placement.
Transportation Infrastructure
Suitable for roads, bridges, pavements, and other large-area concrete pours.
High-Rise Structures
Ensures effective compaction around dense rebar arrangements in deep and narrow formworks.
Civil & Infrastructure Projects
Widely used in tunnels, culverts, drainage systems, and water-retaining structures.
Remote Job Sites
Reliable performance in off-grid locations where stable electricity is unavailable.
Company Overview
Liaocheng Yangfine Machinery Co., Ltd. operates from the Liaocheng High-Tech Zone in northern China, an established industrial region known for advanced manufacturing. The company spans over 50 acres and maintains 15,000 square meters of modern production facilities, equipped with high-precision CNC machining centers and advanced processing equipment.
Drawing on mature Korean engineering technology, we focus on the development and manufacture of concrete vibration equipment and light construction machinery. Our product portfolio includes:
Portable and internal concrete vibrators
Concrete floor saws
Plate compactors
Flexible shaft pumps
With over ten years of specialization in concrete vibration technology, we continuously invest in innovation and process improvement. Our products hold multiple technical patents and comply with ISO 9001:2000 quality management standards and CE certification.
Our equipment is supplied to Europe, North America, Southeast Asia, the Middle East, and South America, earning strong recognition for durability, performance stability, and consistent quality.
Our operating philosophy is built on quality leadership, integrity, and long-term cooperation, supported by rigorous manufacturing control and professional service.

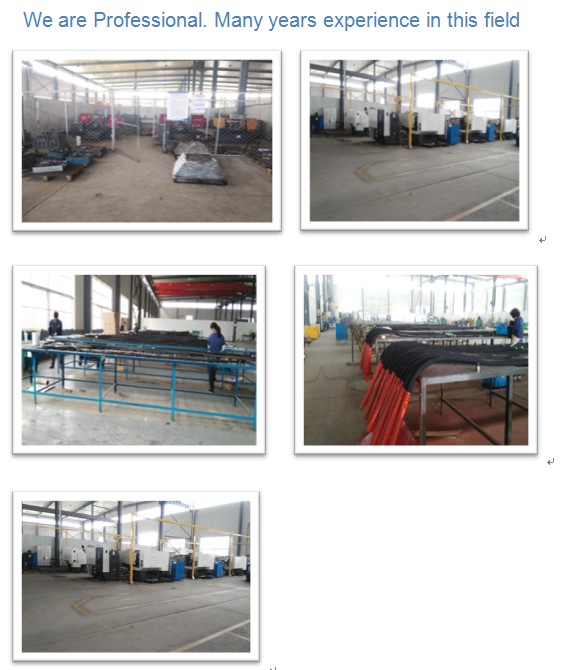

Our workshop
Why Work With Us?
We provide Portable Concrete Vibrators designed for real-world construction challenges, offering a balance of performance, reliability, and cost efficiency.
Flexible power compatibility for diverse working environments
Broad coupling adaptability for multiple drive systems
Optimized vibration output with reduced energy loss
Strict quality inspection throughout the manufacturing process
Fast delivery, responsive support, and OEM customization options
Our Package
FAQ
Is there a minimum order requirement?
No. Single-unit orders are accepted.
How are the products packaged?
Equipment is packed in reinforced cartons and pallets to ensure safe international transportation.
What payment methods do you accept?
T/T 30% deposit and 70% balance before shipment. Inspection photos are provided before final payment.
What delivery terms are available?
EXW, FOB, CFR, CIF, and DDU.
What is the typical lead time?
Standard delivery time is within 30 days, depending on order quantity and configuration.
Can you manufacture according to samples or drawings?
Yes. OEM and customized production are supported based on samples or technical drawings.
Are samples available?
Yes. Samples can be provided for testing upon request.
Do you inspect products before shipment?
Yes. All products undergo 100% inspection and testing prior to packing.
How do you ensure long-term cooperation?
By maintaining consistent quality, fair pricing, and reliable service, ensuring mutual benefit for long-term partnerships.
