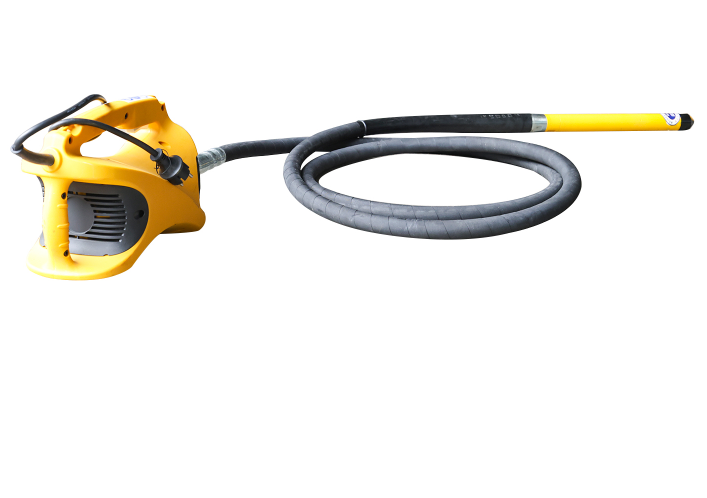

Vibrator for Concrete Used
1.The switch box made from impact aluminium alloy,robust and watertight
2.Switch protected by a reinforced rubber washer resistant to continuous use and the wear and teat of abrasive materials
3.Can be employed for all types of vibration operations
Product Introduction

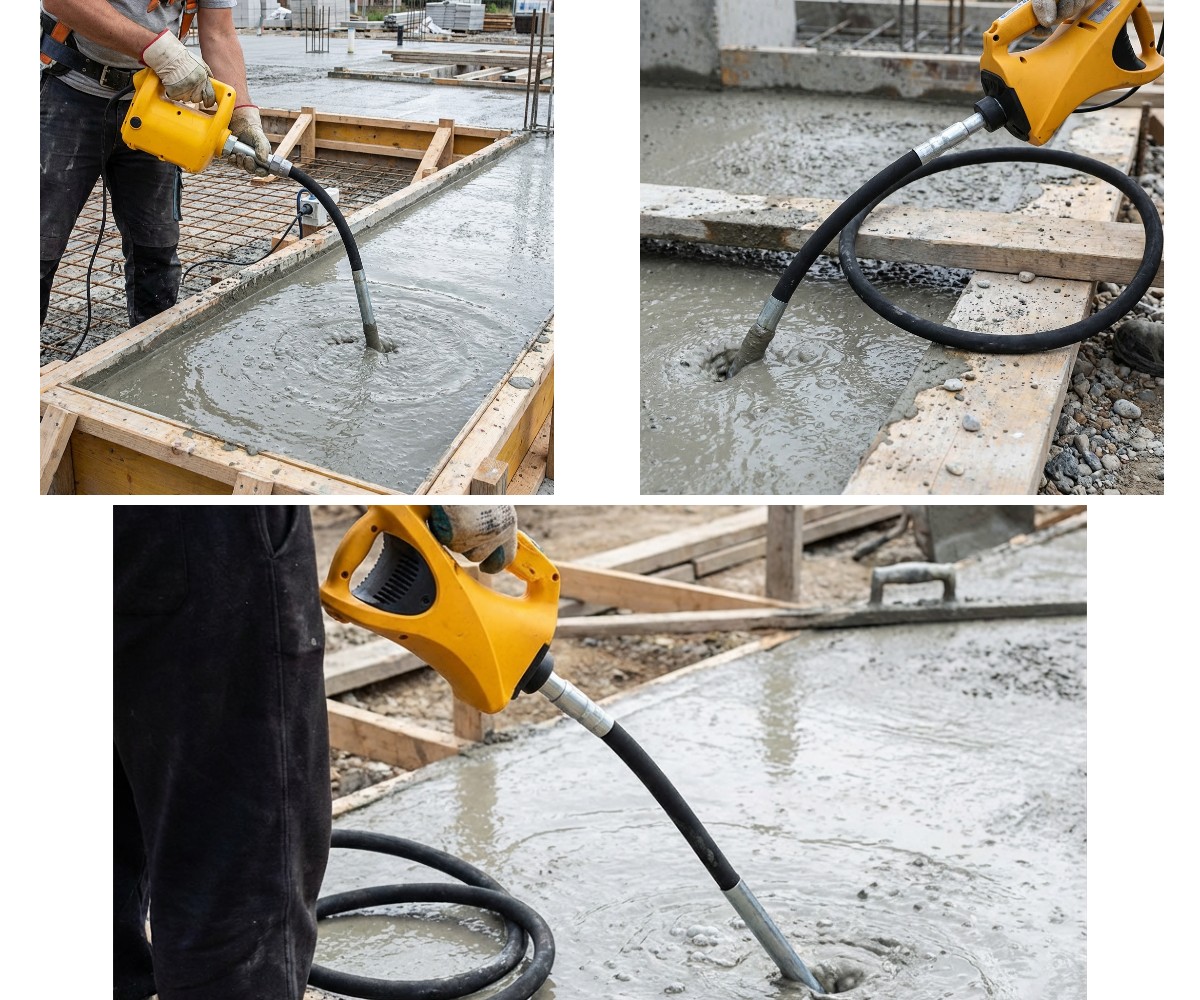

Our Vibrator for Concrete is a reliable and efficient concrete compaction tool designed to ensure proper consolidation during concrete placement. By generating consistent vibration, it effectively removes trapped air, improves concrete density, and enhances bonding between aggregates. Engineered for use on modern construction sites, this equipment helps achieve a smooth surface finish while increasing the overall strength and durability of concrete structures. Suitable for contractors, builders, and civil engineering projects, our concrete vibrator delivers stable performance, easy operation, and dependable results across a wide range of applications.
Product Specifications
Model | Vibrator Head Dia.×Length | Vibrating Frquency(VPM) | Rotational Speed(RPM) | Vibrating Amplitude(mm) | Diameter of Flexibie Hose(mm) | Diameter of Flexibie Shaft(mm) | Length(M) | Weight(kg) |
YFB-28 | 28×350 | 12,000-14,000 | 9,500-14,000 | 1 | 30 | 10 | 4(1-6) | 8.9 |
YFB-32 | 32×370 | 1.2 | 30 | 10 | 9.3 | |||
YFB-38 | 38×390 | 1.6 | 30 | 10 | 9.9 | |||
YFB-45 | 45×390 | 1.8 | 30 | 10 | 10.6 | |||
YFB-48 | 48×390 | 1.8 | 30 | 10 | 11 | |||
YFB-58 | 58×390 | 2 | 30 | 10 | 12.7 |

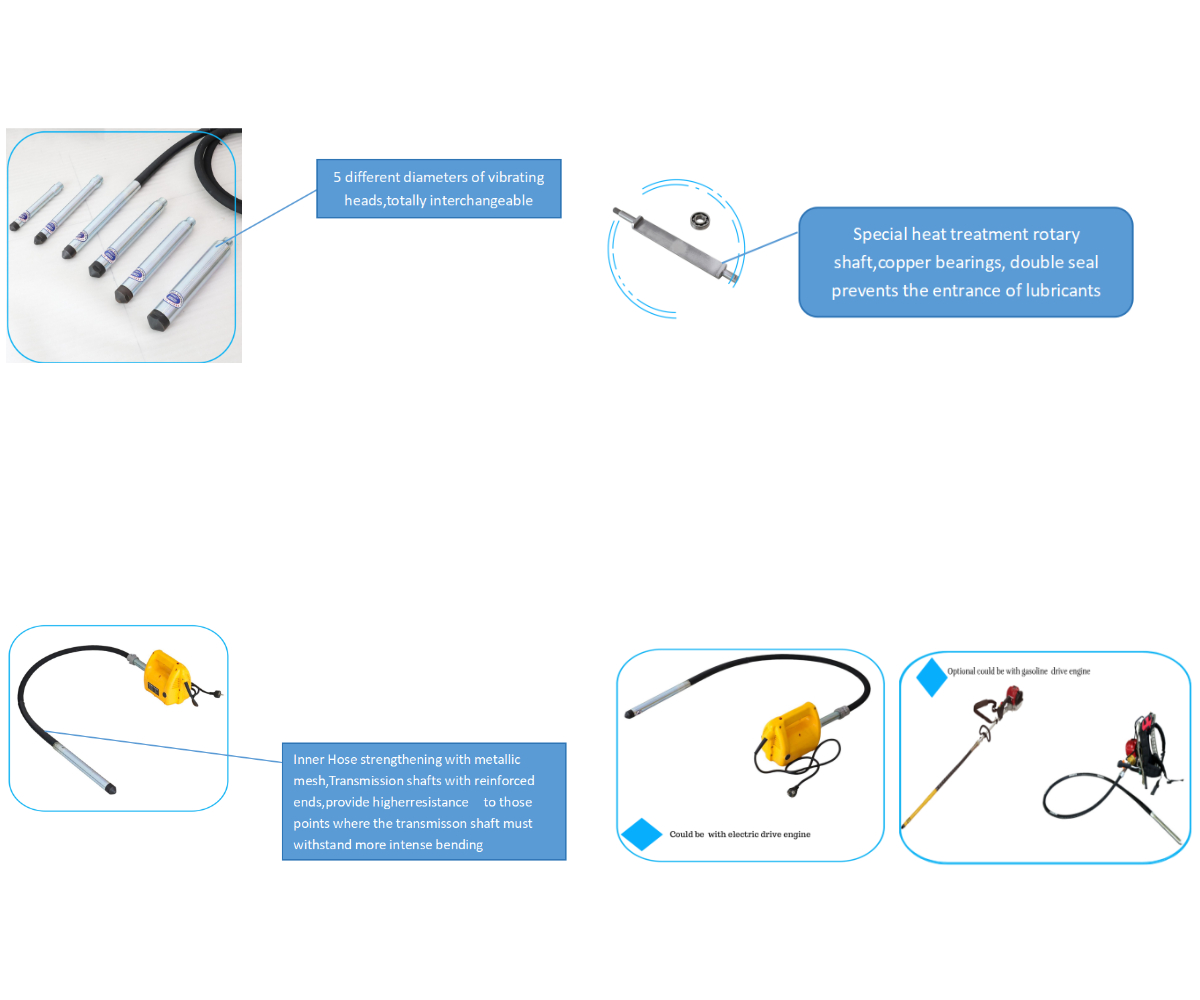

Detail
Key Features
High Compaction Efficiency
Delivers powerful and stable vibration to ensure fast, uniform, and effective concrete consolidation.Durable & Rugged Construction
Manufactured with high-strength steel housings and wear-resistant components, suitable for harsh job-site conditions.Reliable Cooling & Protection System
Designed for continuous operation with effective heat dissipation to prevent overheating and ensure long service life.Interchangeable Vibrator Heads

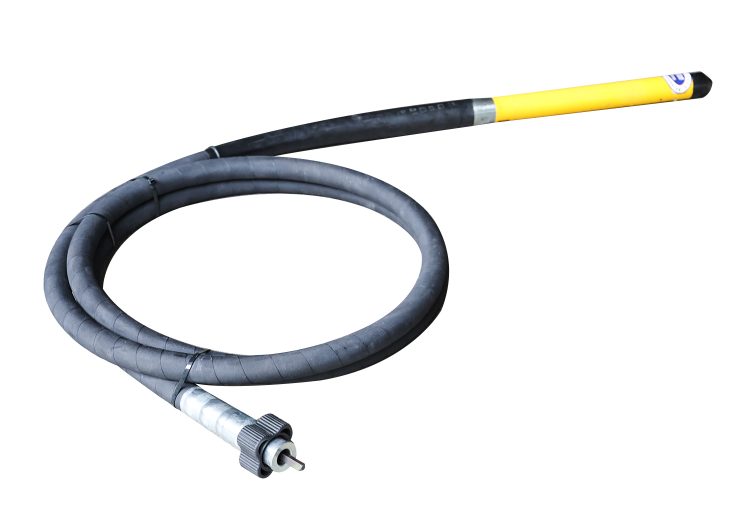

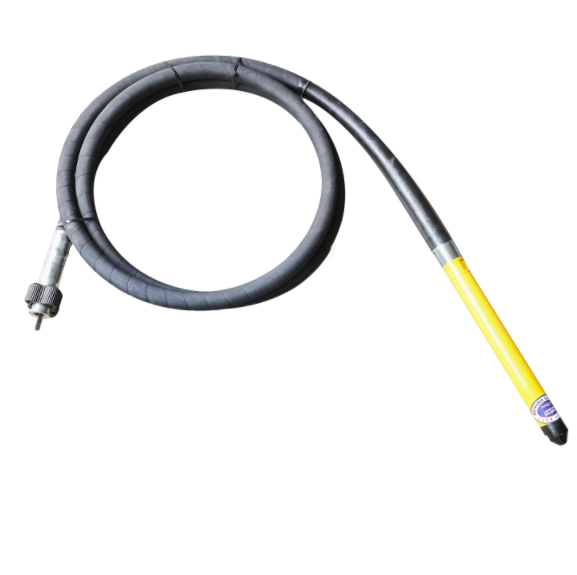

Available in multiple poker diameters to accommodate different concrete depths, reinforcement densities, and application needs.Reduced Operator Fatigue
Optimized shaft and handle design minimizes vibration transmission and noise, improving comfort during extended use.Portable & Easy to Operate
Lightweight and compact design allows easy transportation and maneuverability on construction sites.
Applications
Reinforced Concrete Works
Columns, beams, walls, bridges, tunnels, and load-bearing structures.Foundation Construction
Footings, slabs, floors, and retaining walls.Precast Concrete Production
Concrete pipes, panels, blocks, railway sleepers, and precast elements.High-Rise & Commercial Buildings
Ensures consistent compaction where structural integrity is critical.Infrastructure Projects
Roads, dams, airports, ports, and water treatment facilities.
Whether for residential, commercial, or industrial construction, our Vibrator for Concrete delivers reliable performance and consistent compaction results across all types of concrete works.
About Us
Liaocheng Yangfine Machinery Co., Ltd. is located in Liaocheng High-Tech Zone, a well-known water city in northern China. The company covers more than 50 acres, with modern manufacturing facilities spanning over 15,000 square meters and equipped with dozens of high-precision CNC machining machines.
Based on advanced Korean technology, we specialize in the design and production of concrete vibrators and other light construction machinery. Our main products include various types of concrete vibrators, concrete floor saws, plate compactors, and flexible shaft pumps. With over ten years of dedicated experience in concrete vibrator development and innovation, we have obtained multiple product patents in this field and achieved ISO 9001 and CE certifications.
Our products are exported to Europe, the United States, Southeast Asia, the Middle East, and North and South America, earning strong customer recognition for their stable quality and reliable performance. We adhere to the principles of “Quality First, Reputation First, Integrity-Based, and Pursuit of Excellence,” delivering innovative design, precise manufacturing, and attentive service.

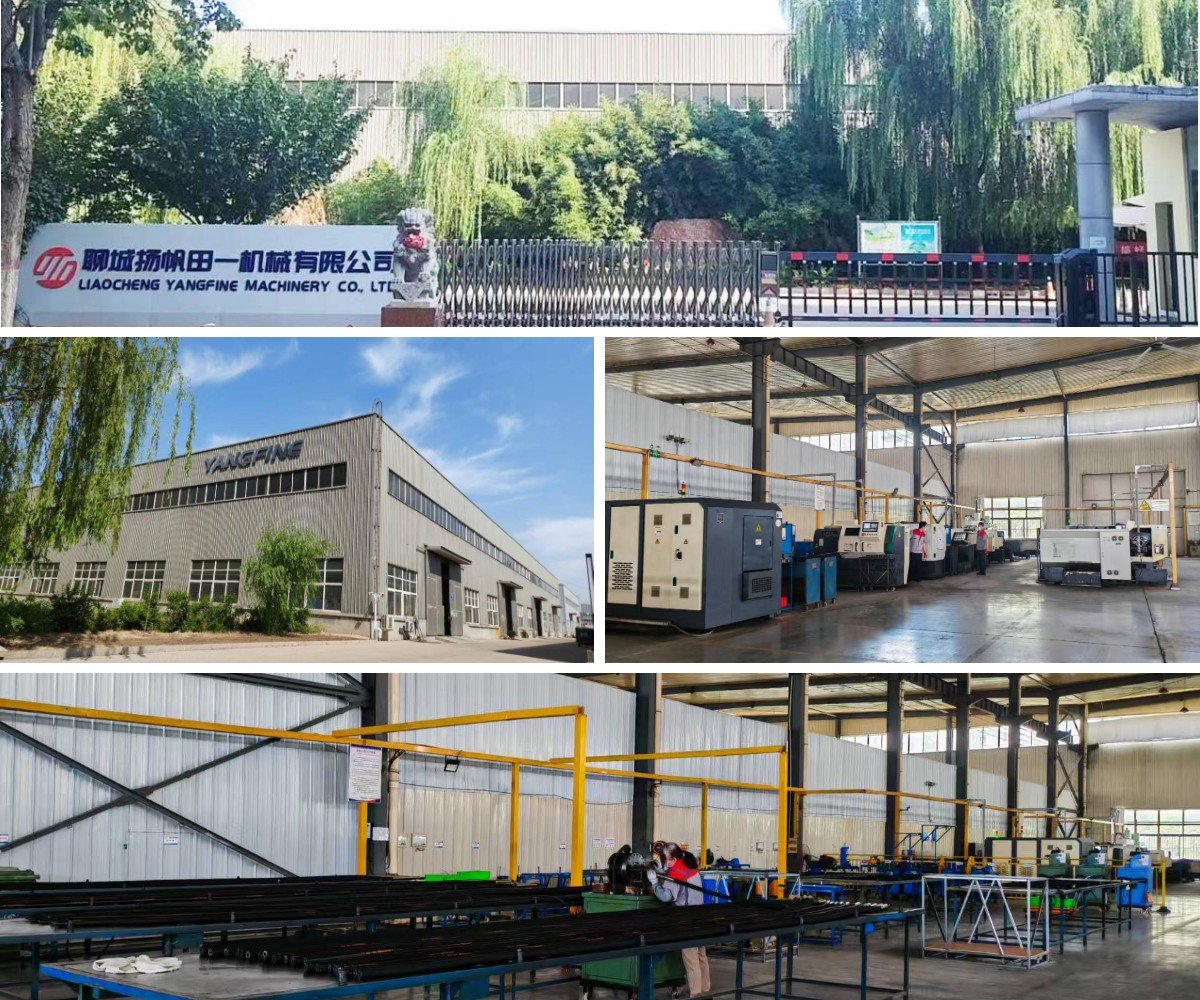

Our company and workshop
Our package
Our certification
Why Choose Us?
Experienced Manufacturer
Specialized in concrete vibration equipment with proven expertise for global markets.Certified Quality
CE and ISO-certified products ensure safety, durability, and consistent performance.Customization Support
Flexible options for shaft length, vibrator head size, and power configuration to match project requirements.Competitive Factory Pricing
Direct manufacturing ensures cost-effective solutions without sacrificing quality.Complete After-Sales Service
Fast delivery, responsive technical support, and readily available spare parts.
