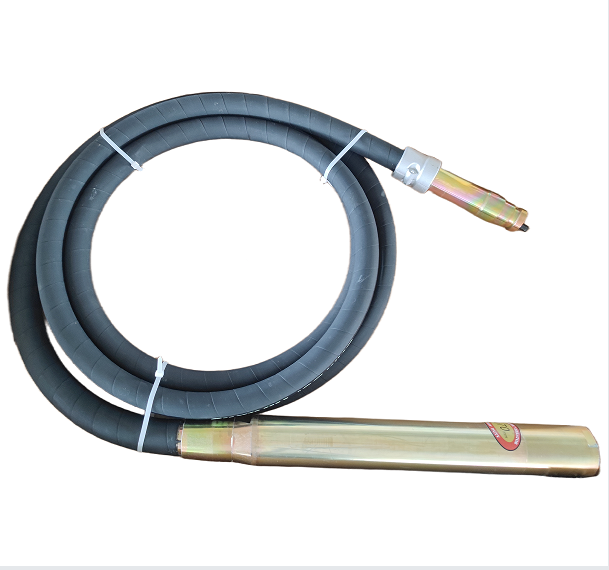

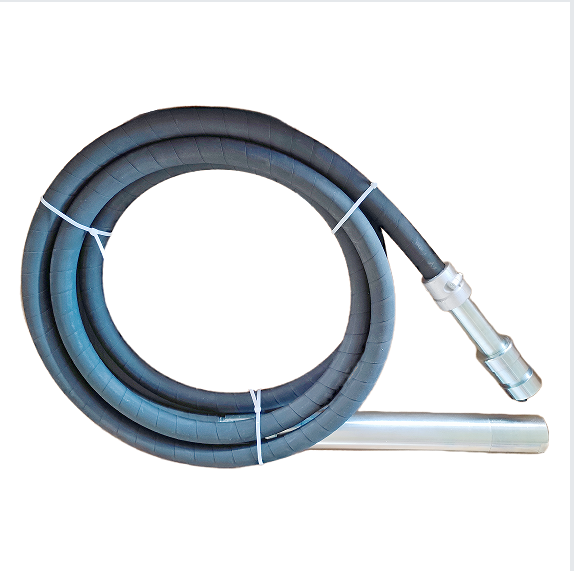

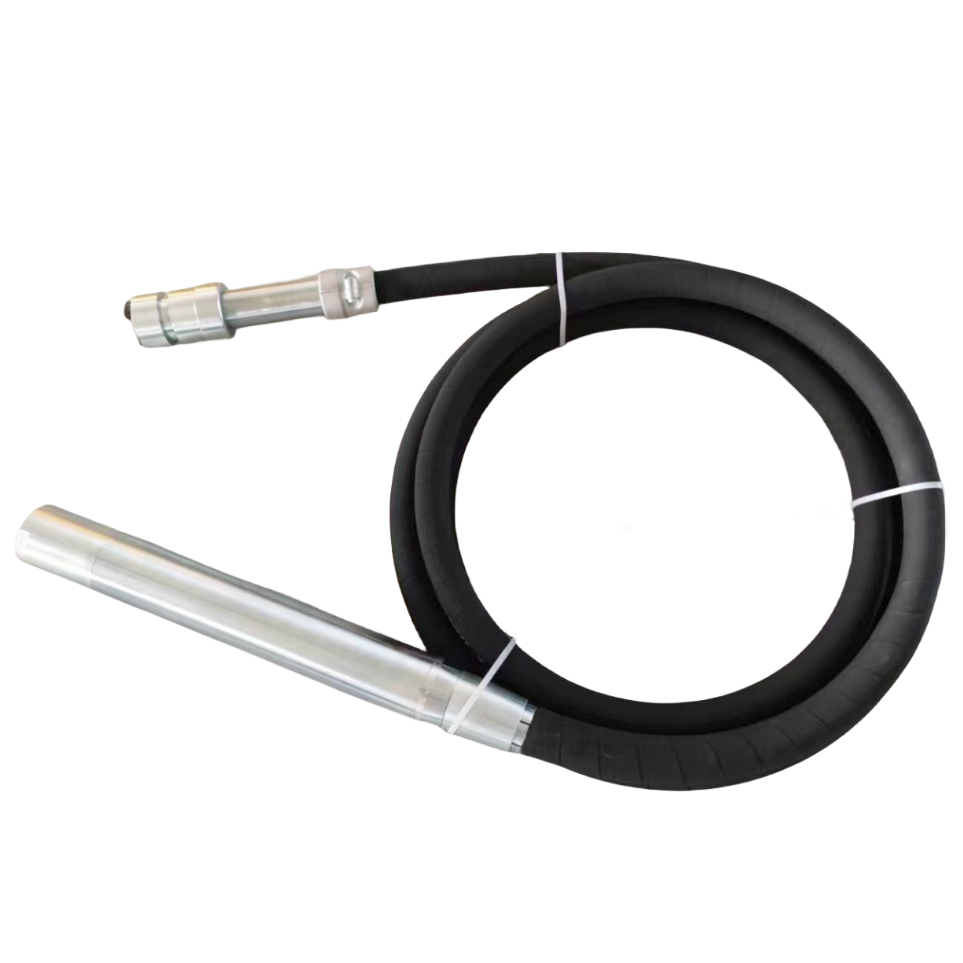

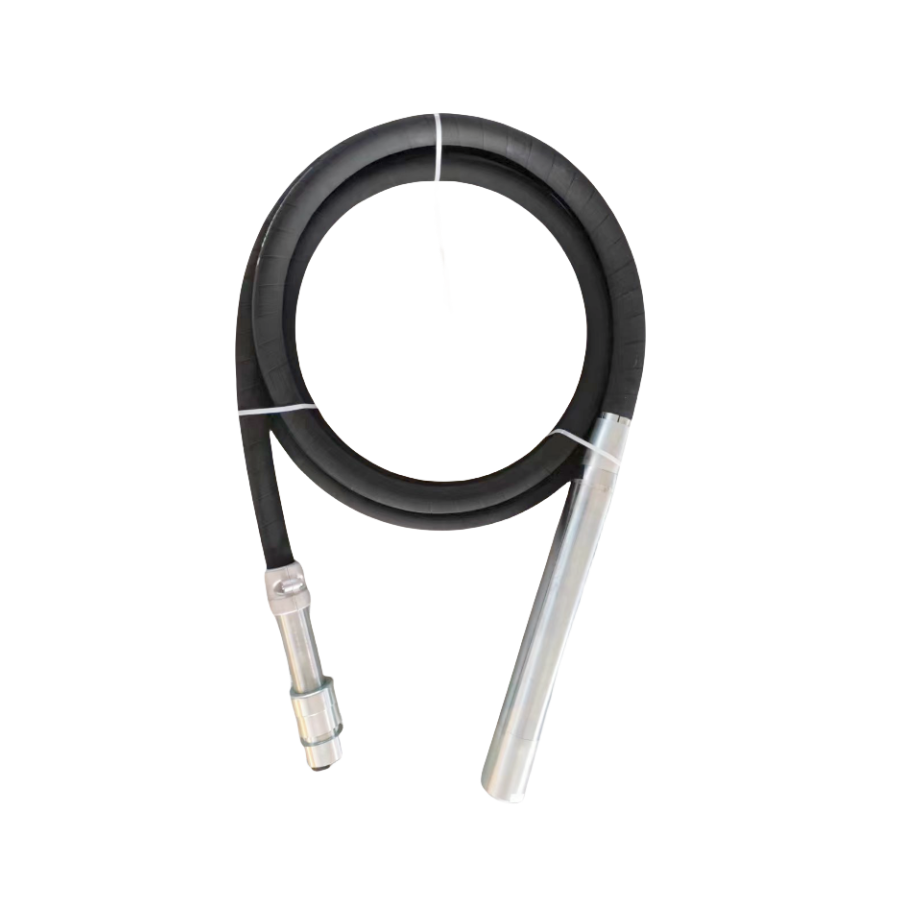

Pneumatic concrete vibrator
1. Its equally efficient operation with an electric engine,or gasoline engine or diesel engine.Can be adapted to all kinds of building conditions
2. Can be with different types of couplings
3. Optimal compaction of the concrete and the reduction in the effort required and production costs
Product Introduction
The Pneumatic Concrete Vibrator is a robust and efficient concrete compaction tool designed for reliable performance in a wide range of construction environments. Engineered for flexibility and durability, it can be driven by electric motors, gasoline engines, or diesel engines, making it adaptable to different job site conditions and power availability.
Featuring a proven pendulum-type vibration mechanism, this vibrator delivers strong centrifugal force for deep and uniform concrete compaction. It effectively removes air pockets, improves concrete density, and enhances structural strength while reducing labor intensity and increasing productivity. From high-rise construction to road and infrastructure projects, this concrete vibrator ensures consistent results and long service life.
Technical Specifications
Model | Vibrator Head Dia.×Length | Vibrating Frquency（VPM） | Rotational Speed（RPM） | Vibrating Amplitude（mm） | Diameter of Flexibie Hose（mm） | Diameter of Flexibie Shaft（mm） | Length（M） | Weight（kg） |
YFCE-35 | 35×420 | 9,000-12,500 | 2750-3000 | 1.6 | 30 | 10 | 6(4-12) | 15 |
YFCE-50 | 50×490 | 2.3 | 36(46) | 13 | 23 | |||
YFCE-70 | 70×520 | 2.5 | 36(46) | 13 | 26 |
Key Features
Multi-Power Compatibility
Designed to operate efficiently with electric, gasoline, or diesel power sources, allowing reliable performance across various working environments.
Powerful Pendulum Vibration System
The pendulum-driven vibration head produces strong and stable centrifugal force, ensuring deep penetration and uniform compaction of concrete.
Flexible Coupling Options
Compatible with multiple coupling types, enabling easy connection to different motors and drive units.
Cost-Effective Operation
Delivers high compaction efficiency with reduced energy consumption and labor effort, helping lower operating costs and shorten project timelines.
Durable & Low Maintenance Design
Manufactured from high-quality materials to withstand continuous operation in harsh conditions while requiring minimal maintenance.

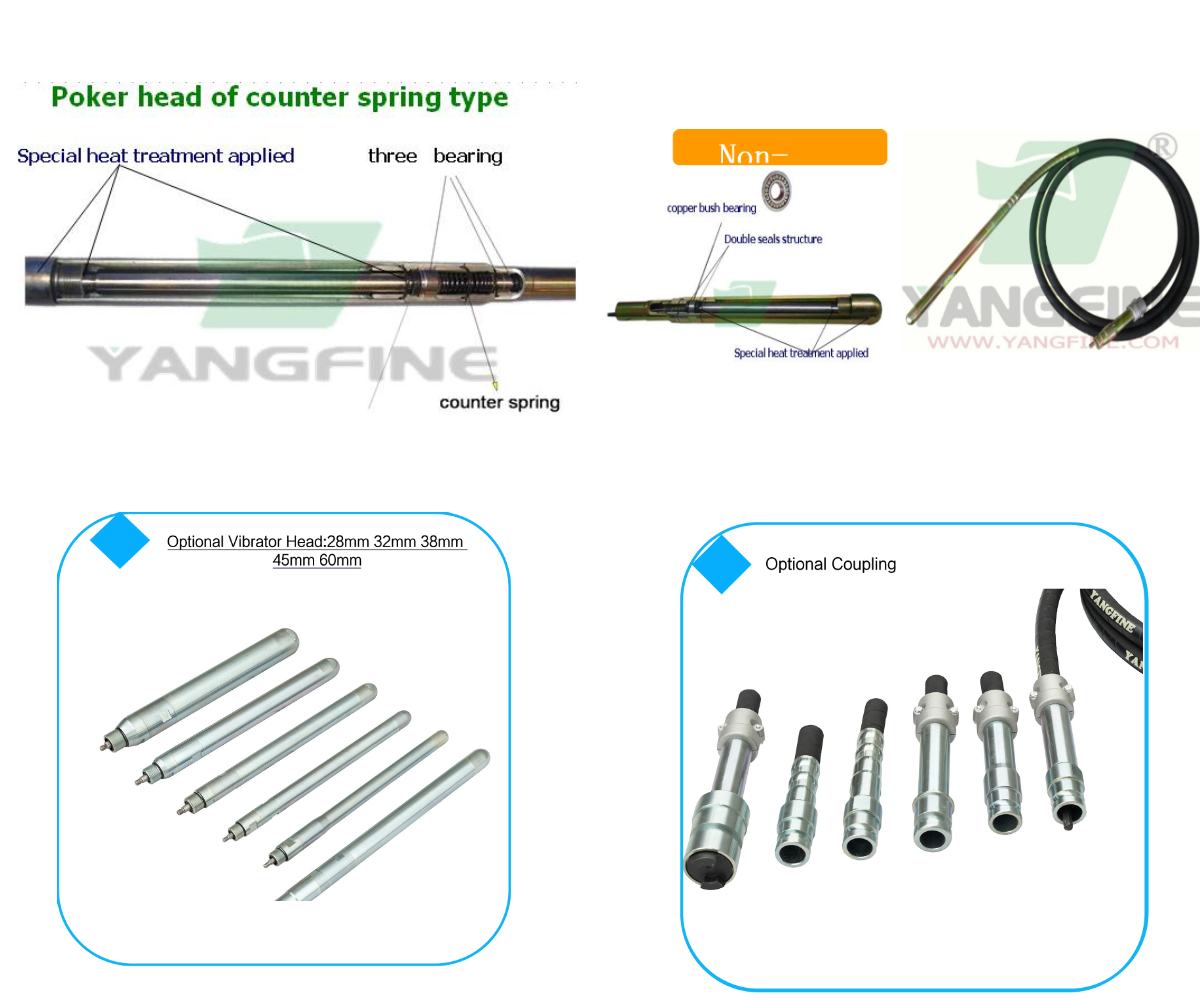

Detail
Applications
Residential & Commercial Foundations
Ideal for slabs, footings, beams, and other foundation works requiring dense, air-free concrete.
Road & Bridge Construction
Suitable for large horizontal concrete pours such as pavements, bridge decks, and structural components.
High-Rise Buildings & Structural Columns
Ensures effective compaction around dense reinforcement in vertical concrete structures.
Infrastructure Projects
Reliable for tunnels, culverts, water-retaining structures, and municipal construction works.
Remote or Off-Grid Job Sites
Can operate efficiently in areas without stable electricity when powered by gasoline or diesel engines.
About Us
Liaocheng Yangfine Machinery Co., Ltd. is located in Liaocheng High-Tech Zone, a well-known water city in northern China. The company covers more than 50 acres and operates modern manufacturing facilities totaling over 15,000 square meters, equipped with dozens of high-precision CNC machining machines.
Based on advanced Korean technology, we specialize in the design and production of concrete vibrators and other light construction machinery. Our main products include various types of concrete vibrators, concrete floor saws, plate compactors, and flexible shaft pumps. With more than ten years of dedicated focus on concrete vibrator development and innovation, we have obtained multiple product patents and achieved ISO 9001 and CE certifications.
Our products are exported to Europe, the United States, Southeast Asia, the Middle East, and North and South America, earning strong customer recognition for their stable quality and reliable performance. We adhere to the principles of “Quality First, Reputation First, Integrity-Based, and Pursuit of Excellence,” delivering innovative design, precision manufacturing, and attentive service.

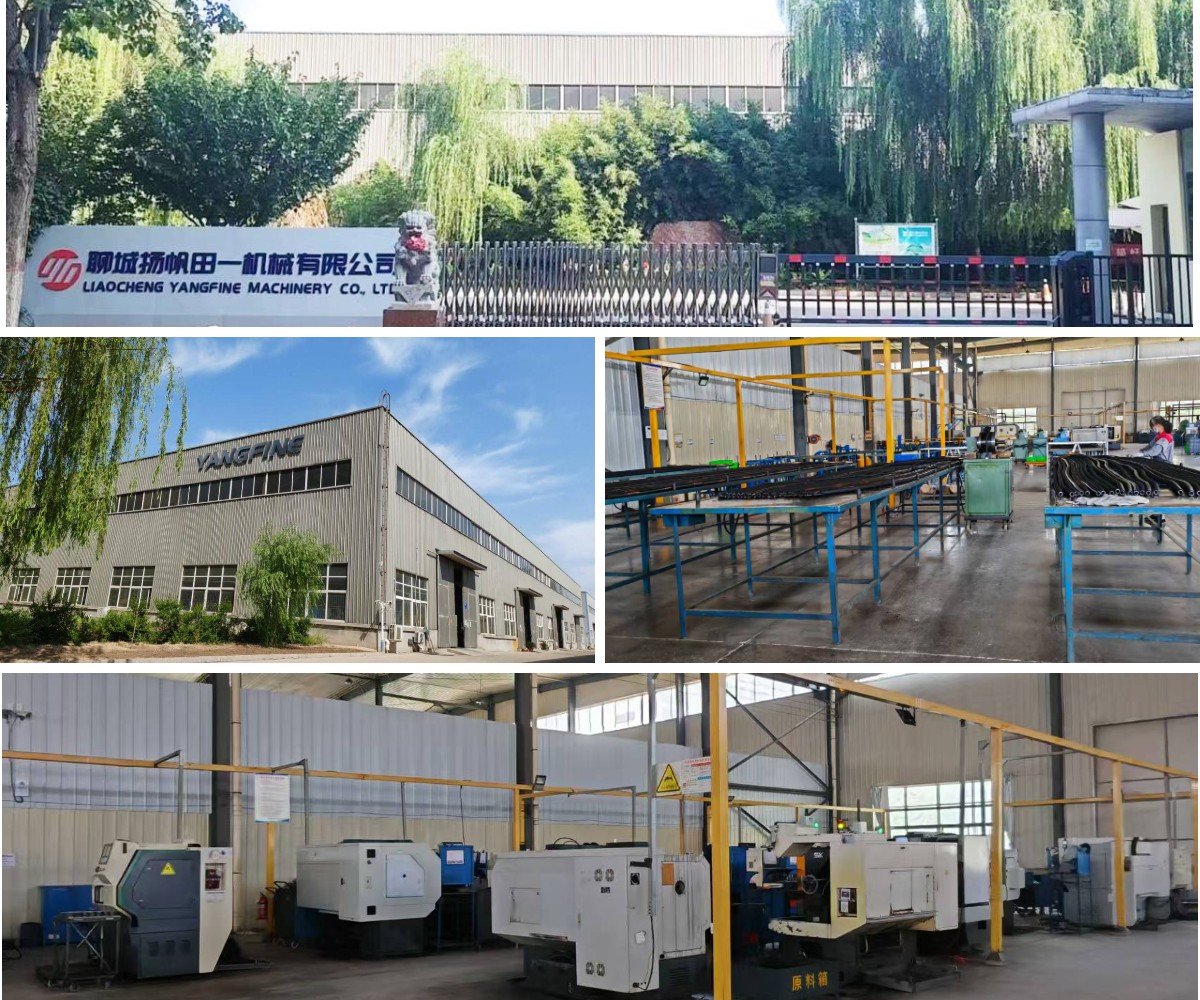

Our company and workshop
Why Choose Us?
Adaptable to multiple power sources and diverse working environments
Compatible with a wide range of coupling systems
Engineered for maximum vibration efficiency with minimal energy loss
Backed by years of manufacturing experience and strict quality control
Supported by fast delivery, responsive customer service, and customization options
Our package
FAQ
Q1: What is the minimum order quantity (MOQ)?
A: There is no MOQ requirement. One piece is available for order.
Q2: What are your packing terms?
A: Products are generally packed in cartons and secured on pallets.
Q3: What are your payment terms?
A: T/T 30% deposit and 70% balance before delivery. Product and package photos will be provided before final payment.
Q4: What delivery terms do you offer?
A: EXW, FOB, CFR, CIF, and DDU.
Q5: What is your delivery time?
A: Normally within one month.
Q6: Can you produce according to samples or drawings?
A: Yes, we can manufacture based on samples or technical drawings.
Q7: Do you provide samples?
A: Yes, samples are available for testing upon request.
Q8: Do you test products before delivery?
A: Yes, all products undergo 100% testing before packaging.
Q9: How do you maintain long-term business relationships?
A: We ensure stable quality, competitive pricing, and professional service to help our customers grow successfully.
Our certificate

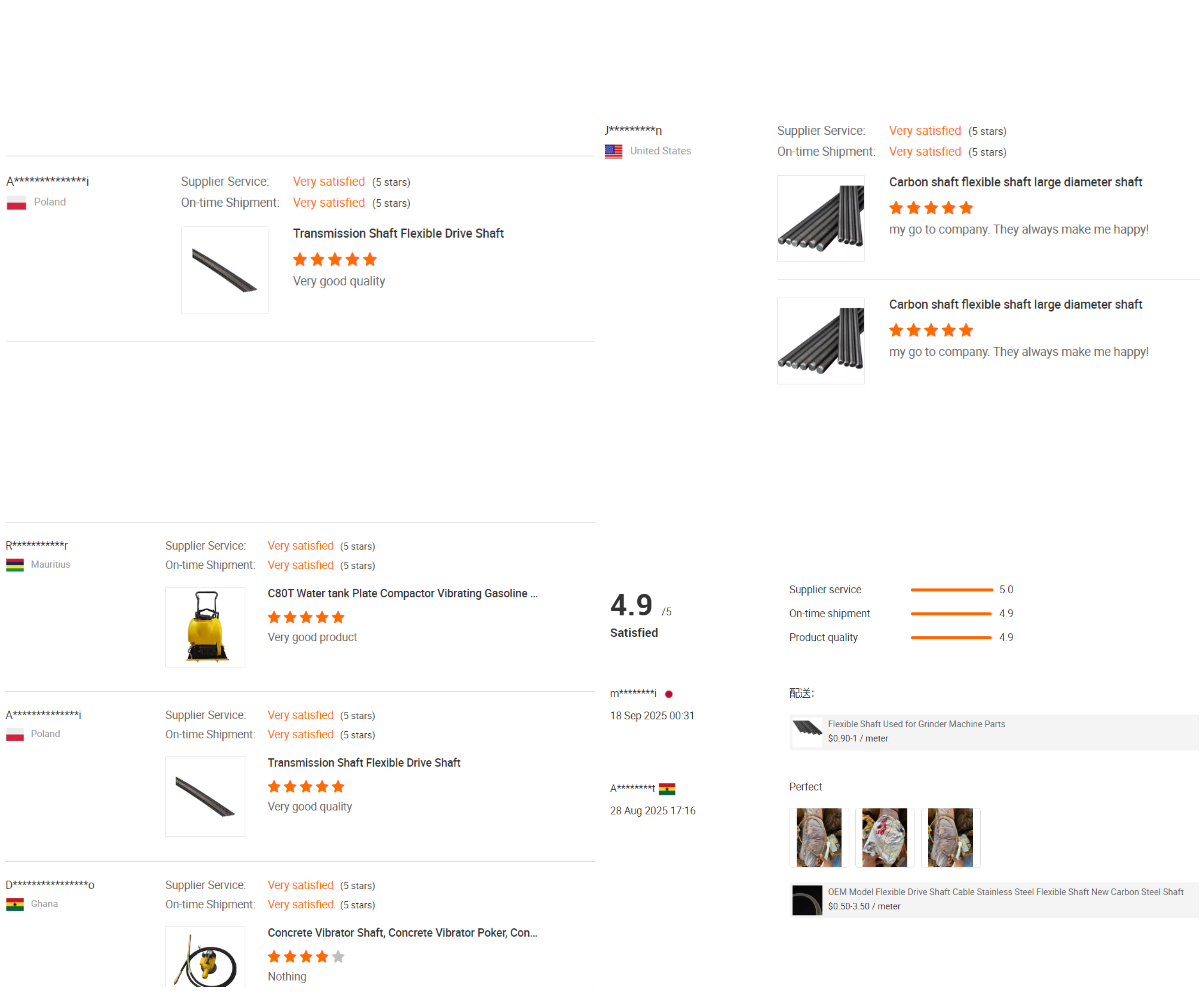

Feedback
