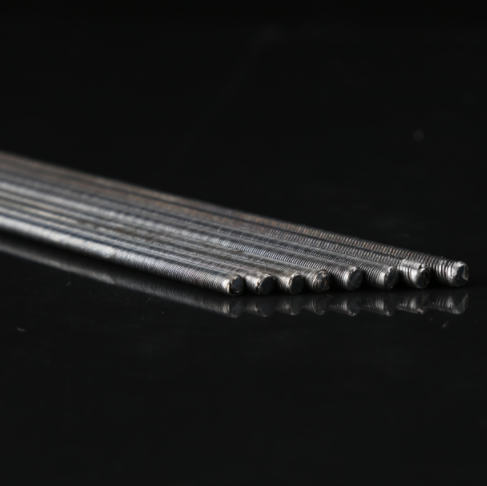

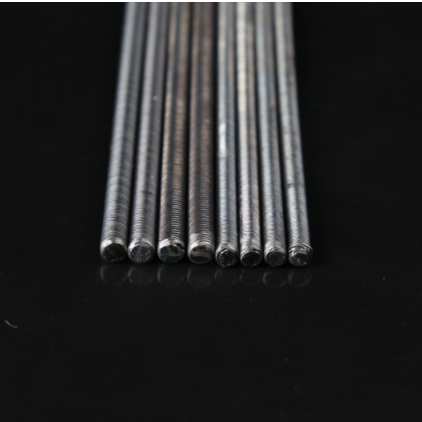

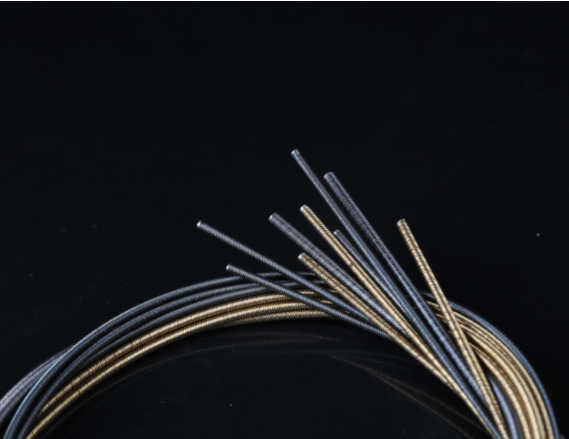

Flexible Drive Cable
1. 32 Years experience .Can accept specialized customized products
2. Low MOQ.Short delivery time
3. Smooth,flexible ,high elasticity.wear-resisting
Product Introduction
The Flexible Drive Cable is a high-performance, precision-engineered component designed to efficiently transmit rotary motion in applications where flexibility, durability, and smooth power delivery are essential. Manufactured from premium materials, our flexible drive cables provide excellent wear resistance, high elasticity, and superior bending capability, making them perfect for a wide range of industrial and construction tools. Whether used in submersible pumps, power tools, or concrete vibrators, these cables deliver reliable, long-lasting performance under demanding conditions.
PRODUCT SPECIFICATION PARAMETER FOR PART OF OUR PRODUCTS
Flexible shaft diameter(mm) | Material | Tolerance (mm) | Bending Diameter (mm) | Layer | Max Failure Torque (N.m) | Weight (Kg/Meter) |
0.9 | 304 stainless steel wire | (-0.05,0) | 10-20 | 3 layers 1 core | 0.5 | 0.0036 |
1.5 | 304 stainless steel wire | (-0.1,0) | 20-30 | 3 layers 1 core | 1.05 | 0.0100 |
2 | 304 stainless stel wire | (-0.1,0) | 30-40 | 3 layers 1 core | 1.3 | 0.0178 |
3.2 | brass coated steel wire | (-0.1,0) | 40-60 | 4 layers 1 core | 2.8 | 0.0457 |
4 | 304 stainless stel wire | (-0.1,0) | 60-80 | 4 layers 1 core | 5.2 | 0.0714 |
5 | 70#/65Mn | (-0.12,0) | 80-100 | 4 layers 1 core | 6.8 | 0.1116 |
5.2 | 304 stainles stel wire | (-0.12,0) | 80-100 | 5 ayers 1 core | 6 | 0.1207 |
6(normal) | 70#/65Mn | (-0.15,0) | 90-110 | 6 ayers 1 core | 6.6 | 0.1606 |
6.35 | 70#/65Mn | (-0.15,0) | 140-160 | 4 ayers 1 core | 15 | 0.1799 |
6.5 | brass coated stel wire | (-0.15,0) | 100-120 | 7 layers 1 core | 9.5 | 0.1885 |
7 | 304 stainless stel wire | (-0.15,0) | 140-160 | 5 layers 1 core | 16 | 0.2186 |
8(al black) | 70#/65Mn | (-0.15,0) | 180-200 | 5 layers 1 core | 37 | 0.2856 |
8(5bacoeted | brass coated stel wire+70# | (-0.15,0) | 140-160 | 5 layers 1 core | 30 | 0.2856 |
9 | 70#/65Mn | (-0.15,0) | 180-200 | 4 layers 1 core | 42 | 0.3614 |
9.15(high speed) | 70#/65Mn | (-0.15,0) | 240-260 | 5 layers 1 core | 45 | 0.3736 |
9.5(all brass coated) | brass coated steel wire+70# | (-0.15,0) | 150-180 | 6 layers 1 core | 50 | 0.4027 |
10(normal) | 70#/65Mn | (-0.18,0) | 240-260 | 4 layers 1 core | 50 | 0.4462 |
12(normal) | 70#/65Mn | (-0.18,0) | 250-270 | 5 ayers 1 core | 70 | 0.6425 |
13(normal) | 70#/65Mn | (-0.18,0) | 260-280 | 5 layers 1 core | 110 | 0.7541 |
14(normal) | 70#/65Mn | (-0.18,0) | 280-300 | 5 ayers 1 core | 90 | 0.8746 |
15(normal) | 70#/65Mn | (-0.18,0) | 320-340 | 5 layers 1 core | 120 | 1.0040 |
16(normal) | 70#/65Mn | (-0.18,0) | 340-360 | 5 layers 1 core | 180 | 1.1423 |
18(normal) | 70#/65Mn | (-0.18,0) | 450-480 | 5 layers 1 core | 210 | 14457 |
20(normal) | 70#/65Mn | (-0.25,0) | 650-700/1000-1100 | 5 layers 1 core | 360 | 1.7848 |
22(normal) | 70#/65Mn | (-0.25,0) | 1000-1100 | 5 layers 1 core | 400 | 2.1596 |
25 | 70#/65Mn | (-0.2,0.3) | 900-1100 | 10 layers 1 core | 570 | 2.7888 |
26 | 70#/65Mn | (-0.3,0.3) | 900-100 | 7 ayers 1 core | 950 | 3.0163 |
27(normal) | 70#/65Mn | (-0.5,0) | 900-1100 | 7 ayers 1 core | 520 | 3.2528 |
32(normal) | 70#/65Mn | -0.5,0) | 1000-1200 | 9layers 1 core | 680 | 4.5691 |
40 | 70#/65Mn | (-0.5,0) | 100-1200 | 10 layers 1 core | 800 | 7.1392 |
48 | 70#/65Mn | (-1,0) | 1000-1200 | 12 layers1 core | 1500 | 10.2804 |
Key Features
Smooth and Flexible Transmission
Engineered for maximum flexibility and elasticity, allowing seamless power transfer even under high torque or along curved routing paths.Exceptional Wear Resistance
Constructed from durable, wear-resistant materials to ensure a long service life in harsh environments such as heavy-duty drilling or concrete work.Customizable Solutions
With over 32 years of manufacturing experience, we provide fully customizable flexible drive cables to meet your specific length, diameter, fitting, or performance requirements.Low MOQ and Fast Delivery
Supports small-batch orders with short lead times, helping you stay agile and responsive in your supply chain.Easy Maintenance and Replacement
Designed for quick assembly and disassembly, reducing downtime and enabling efficient field repairs.
Our workshop
Why Choose Our Flexible Drive Cable?
Decades of Expertise – 32+ years in designing and manufacturing flexible drive components for global industrial applications.
Tailored Solutions – Customizable to meet exact specifications, including diameter, length, torque capacity, and fittings.
Low Minimum Orders – Ideal for startups, R&D projects, or flexible procurement strategies.
Fast Delivery & Responsive Service – Ensures your project timelines are met without delays.
Strict Quality Control – Every cable is tested to meet high standards for durability and performance.

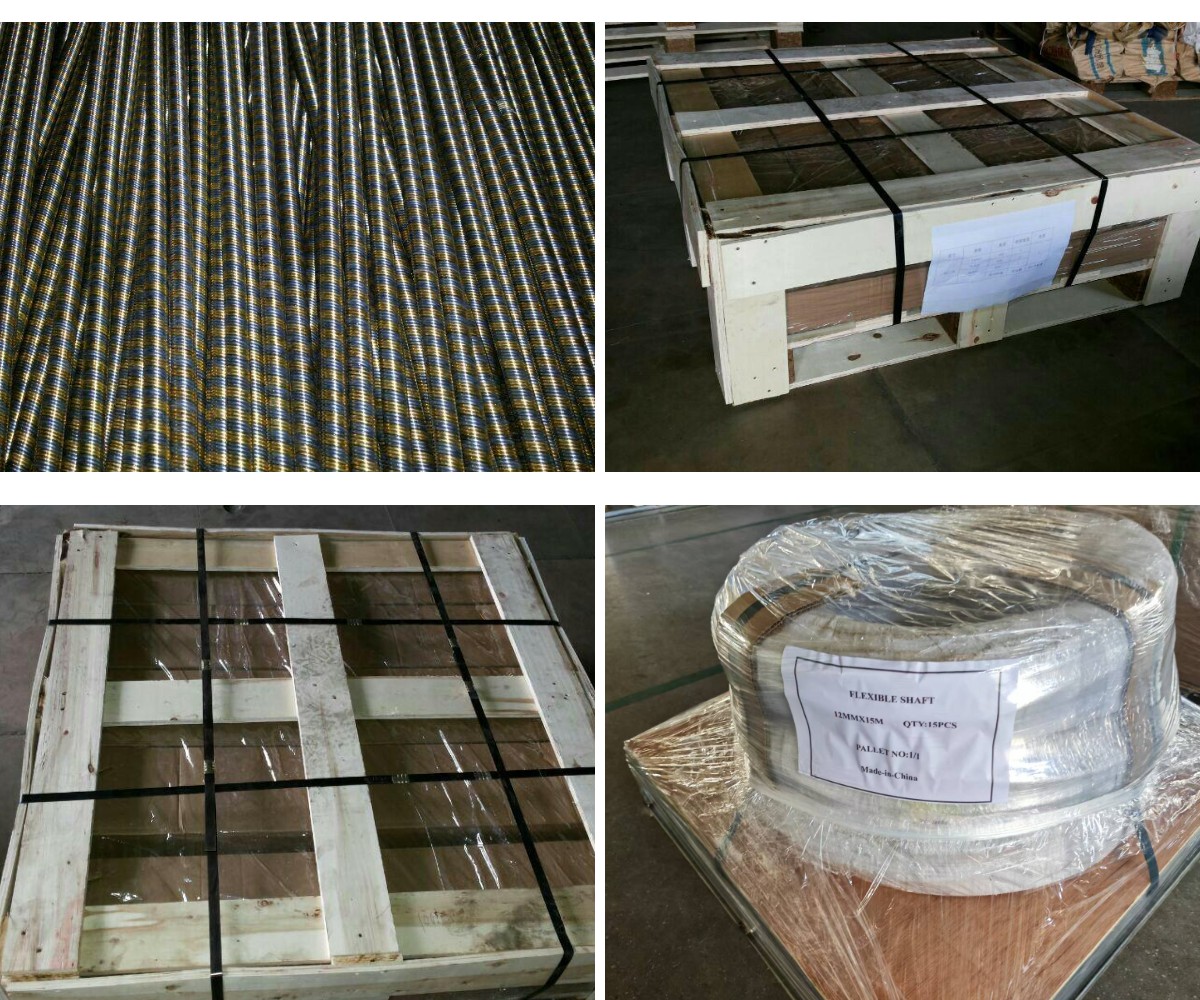

Our package

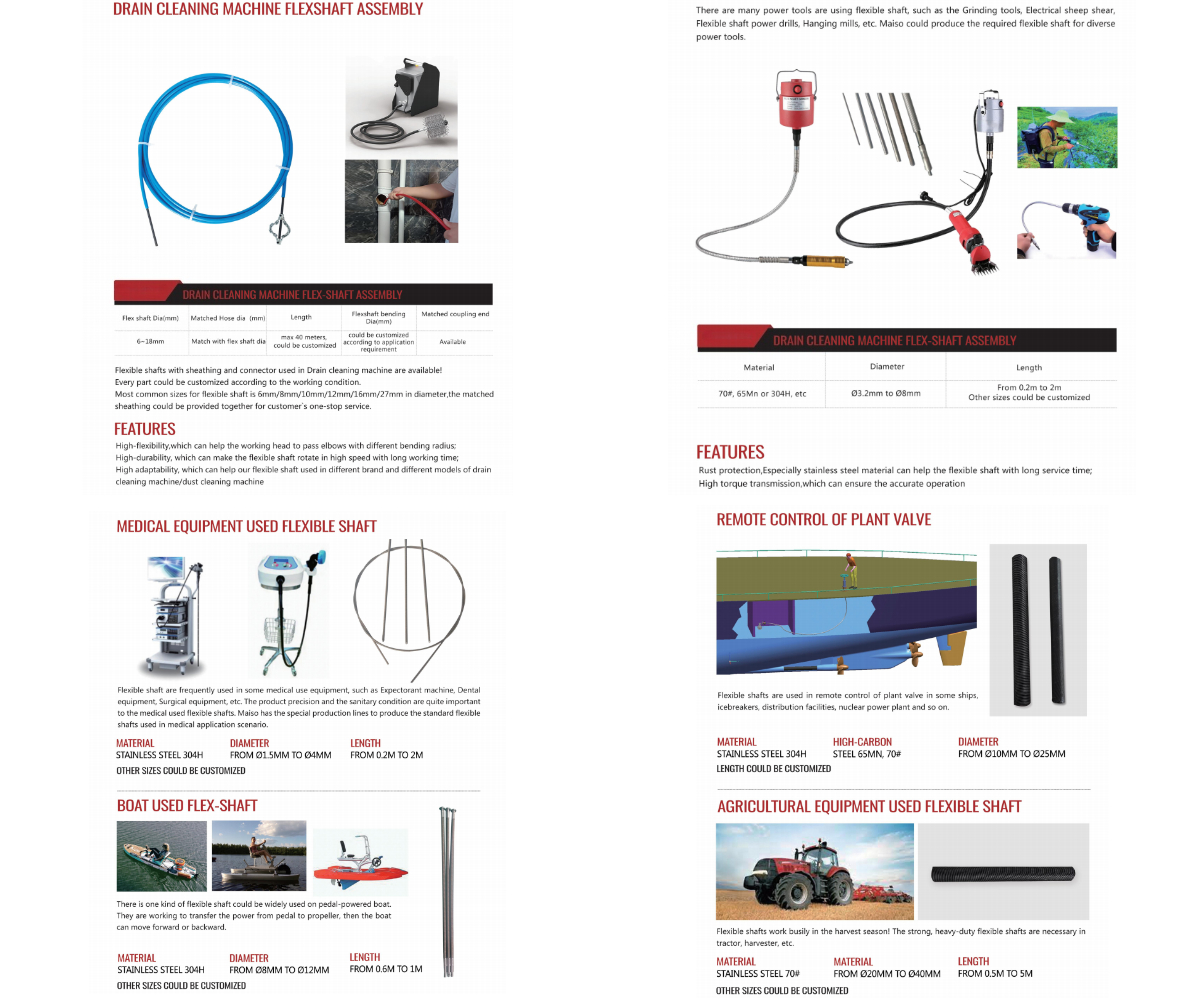

Applications
